MN12TX Series

Catalog

SWITCH ROCKER MINI PC MOUNT

Part	Electrical Life	Mechanical Life	Switch Function	Current Rating (Amps)	Termination Style	Actuator Type	Mounting Type	Voltage Rating - AC	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Circuit	Actuator Marking	Color - Actuator/Cap
NKK Switches MN12TXW13-GH	25000 Steps	50000 Cycles	On-On	4 A 6 A	PC Pin	Paddle	Through Hole	125 V	30 V	85 °C	-30 ░C	UL	SPDT	No Marking
NKK Switches MN12TXG13-DC	50000 Cycles	50000 Cycles	On-On	0.4 VA	PC Pin	Concave	Through Hole	28 V	28 V	85 °C	-30 ░C	UL	SPDT	No Marking	Red
NKK Switches MN12TXW30	25000 Steps	50000 Cycles	On-On	4 A 6 A	PC Pin	Actuator Arm Cap Required	Right Angle Through Hole	125 V	30 V	85 °C	-30 ░C	UL	SPDT	Varies by Cap
NKK Switches MN12TXG30-DB	50000 Cycles	50000 Cycles	On-On	0.4 VA	PC Pin	Concave	Right Angle Through Hole	28 V	28 V	85 °C	-30 ░C	UL	SPDT	No Marking	White
NKK Switches MN12TXW13-DC	25000 Steps	50000 Cycles	On-On	4 A 6 A	PC Pin	Concave	Through Hole	125 V	30 V	85 °C	-30 ░C	UL	SPDT	No Marking	Red
NKK Switches MN12TXW13-DE	25000 Steps	50000 Cycles	On-On	4 A 6 A	PC Pin	Concave	Through Hole	125 V	30 V	85 °C	-30 ░C	UL	SPDT	No Marking	Yellow

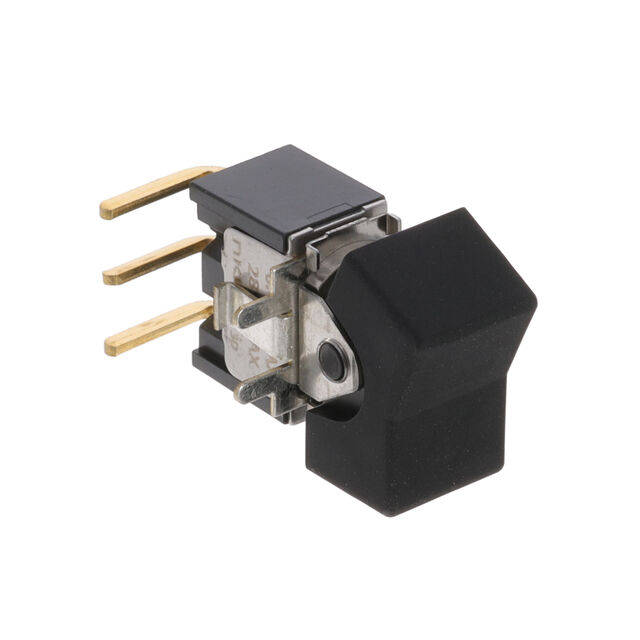

NKK Switches MN12TXG30-DA	50000 Cycles	50000 Cycles	On-On	0.4 VA	PC Pin	Concave	Right Angle Through Hole	28 V	28 V	85 °C	-30 ░C	UL	SPDT	No Marking	Black
NKK Switches MN12TXW13-DB	25000 Steps	50000 Cycles	On-On	4 A 6 A	PC Pin	Concave	Through Hole	125 V	30 V	85 °C	-30 ░C	UL	SPDT	No Marking	White
NKK Switches MN12TXG13-GA	50000 Cycles	50000 Cycles	On-On	0.4 VA	PC Pin	Paddle	Through Hole	28 V	28 V	85 °C	-30 ░C	UL	SPDT	No Marking	Black
NKK Switches MN12TXW13-DH	25000 Steps	50000 Cycles	On-On	4 A 6 A	PC Pin	Concave	Through Hole	125 V	30 V	85 °C	-30 ░C	UL	SPDT	No Marking
