052892 Series

Manufacturer: Molex

Catalog

CONN FFC BOTTOM 12POS 0.5MM R/A

Part	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Features	Termination	Locking Feature	Voltage Rating	FFC, FCB Thickness	Material Flammability Rating	Cable End Type	Mounting Type	Pitch [x]	Pitch [x]	Housing Material	Contact Material	Number of Positions	Actuator Material	Mating Cycles	Connector/Contact Type	Height Above Board	Height Above Board	Flat Flex Type	Number of Positions	Housing Color	Contact Finish Thickness	Contact Finish Thickness	Actuator Color

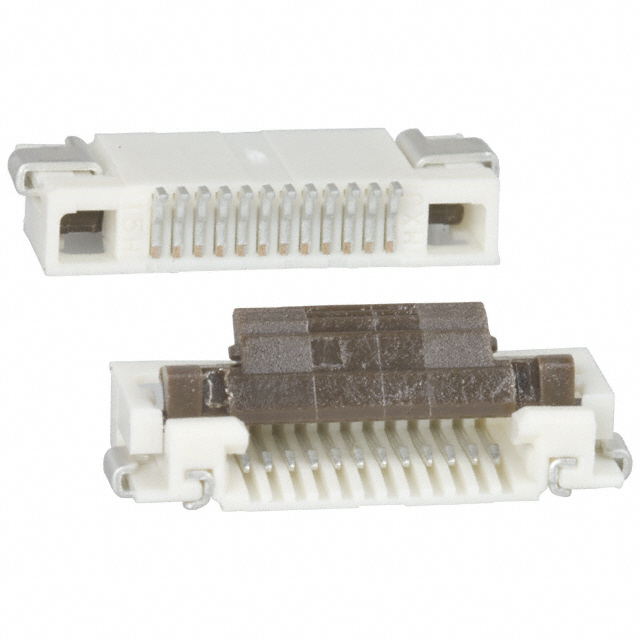

Molex 0528921295	0.5 A	-25 °C	85 °C	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	12	Polyphenylene Sulfide (PPS)	20	Contacts Bottom	0.079 in	2 mm	FFC FPC
Molex 0528921090	0.5 A	-25 °C	85 °C	Tin	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	10	Polyphenylene Sulfide (PPS)		Contacts Bottom	0.079 in	2 mm	FFC FPC
Molex 0528921690	0.5 A	-25 °C	85 °C	Tin	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Phosphor Bronze		Polyphenylene Sulfide (PPS)		Contacts Bottom	0.079 in	2 mm	FFC FPC	16
Molex 0528921133	0.5 A	-40 °C	85 °C	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA) Nylon Glass Filled	Phosphor Bronze	11	Polyphenylene Sulfide (PPS) Glass Filled	20	Contacts Bottom	0.079 in	2 mm	FFC FPC		White	39.4 Áin	1 Ám	Brown
Molex 0528921590	0.5 A	-25 °C	85 °C	Tin	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	15	Polyphenylene Sulfide (PPS)		Contacts Bottom	0.079 in	2 mm	FFC FPC
Molex 0528922496	0.5 A	-30 ░C	85 °C	Gold	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	24	Polyphenylene Sulfide (PPS) Glass Filled	20	Contacts Bottom	0.079 in	2 mm	FFC FPC

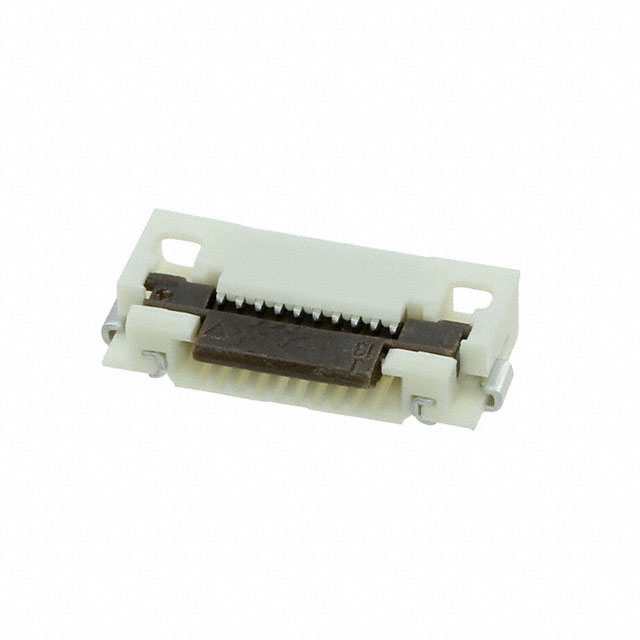

Molex 0528921033	0.5 A	-40 °C	85 °C	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA) Nylon Glass Filled	Phosphor Bronze	10	Polyphenylene Sulfide (PPS) Glass Filled	20	Contacts Bottom	0.079 in	2 mm	FFC FPC		White	39.4 Áin	1 Ám	Brown

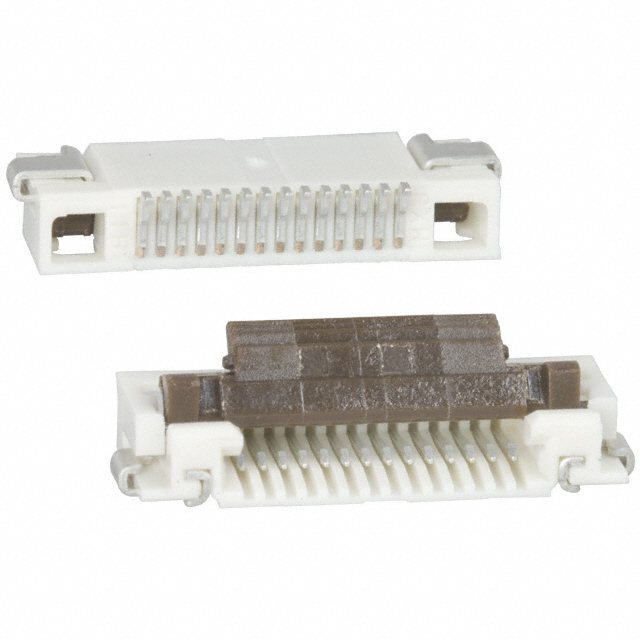

Molex 0528921495	0.5 A	-25 °C	85 °C	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	14	Polyphenylene Sulfide (PPS)	20	Contacts Bottom	0.079 in	2 mm	FFC FPC

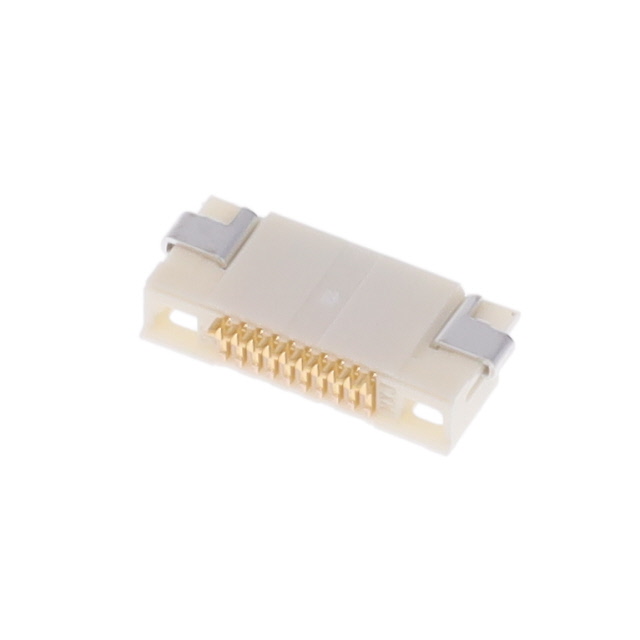

Molex 0528921096	0.5 A	-30 ░C	85 °C	Gold	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA46) Nylon 4/6	Phosphor Bronze	10	Polyphenylene Sulfide (PPS) Glass Filled	20	Contacts Bottom	0.079 in	2 mm	FFC FPC
Molex 0528921333	0.5 A	-40 °C	85 °C	Tin Bismuth	Solder Retention Zero Insertion Force (ZIF)	Solder	Flip Lock	50 V	0.3 mm	UL94 V-0	Straight Tapered	Surface Mount Right Angle	0.5 mm	0.02 in	Polyamide (PA) Nylon Glass Filled	Phosphor Bronze	13	Polyphenylene Sulfide (PPS) Glass Filled	20	Contacts Bottom	0.079 in	2 mm	FFC FPC		White	39.4 Áin	1 Ám	Brown
