DPF14 Series

Catalog

CONN QC RCPT 14-16AWG 0.187

Part	Tab Thickness	Tab Thickness	Length - Overall [x]	Length - Overall [x]	Terminal Type	Contact Finish	Insulation	Wire Gauge [Min]	Wire Gauge [Max]	Termination	Contact Material	Gender	Mounting Type	Color	Tab Width	Tab Width	Insulation Diameter [Min]	Insulation Diameter [Max]	Insulation Diameter [Min]	Insulation Diameter [Max]	Features	Tab Width [x]	Tab Width [x]
Panduit Corp DPF14-205FIB-M	0.81 mm	0.032 in	0.78 in	19.81 mm	Standard	Tin	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Female	Free Hanging (In-Line)	Blue	0.187 " 0.205 in	4.75 mm 5.21 mm

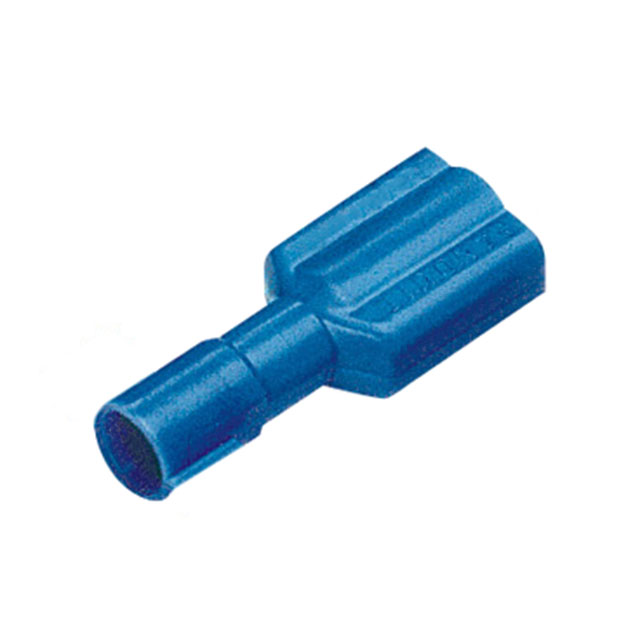

Panduit Corp DPF14-187FIB-3K	0.81 mm	0.032 in	0.78 in	19.81 mm	Standard	Tin	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Female	Free Hanging (In-Line)	Blue			0.09 in	4.06 mm	2.29 mm	0.16 in	Butted Seam	0.187 in	4.75 mm

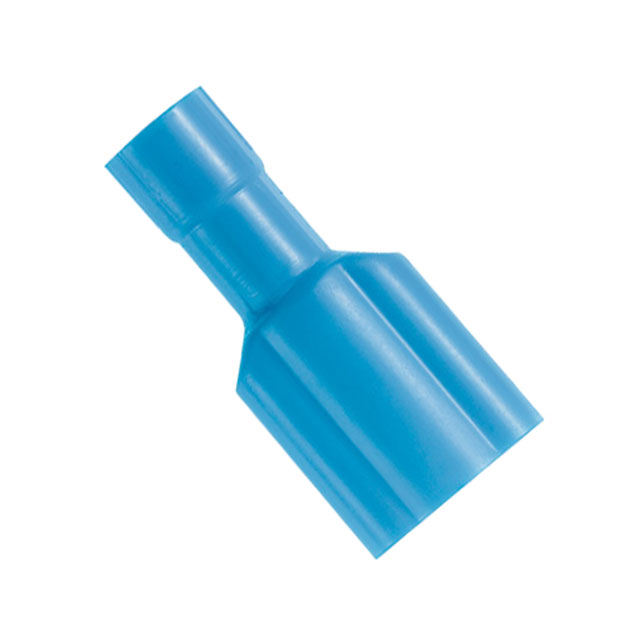

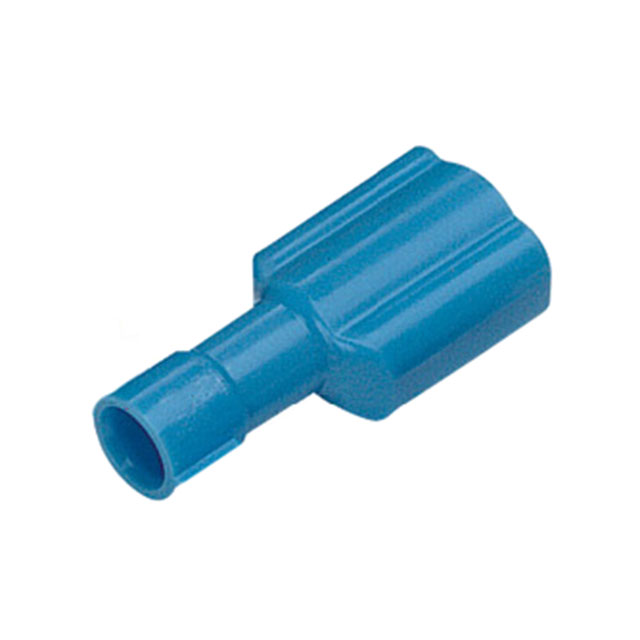

Panduit Corp DPF14-250FIM-2K	0.81 mm	0.032 in	0.9 "	22.86 mm	Standard	Nickel	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Male	Free Hanging (In-Line)	Blue							Butted Seam	0.25 in	6.35 mm

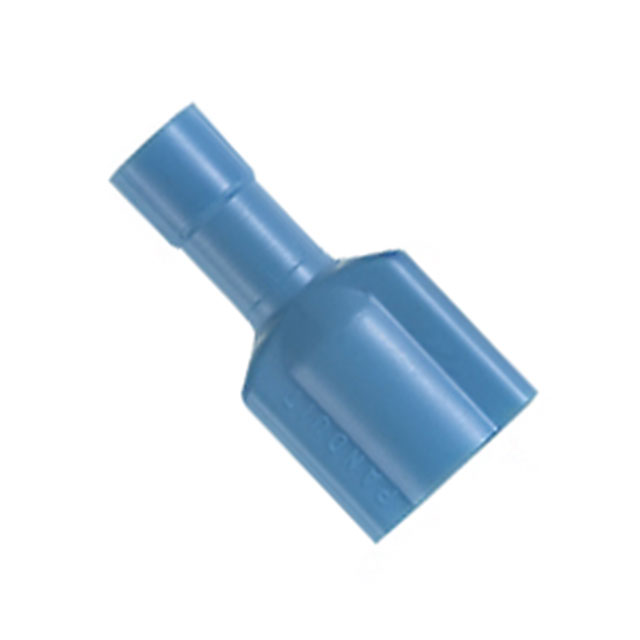

Panduit Corp DPF14-250FIMB-D	0.81 mm	0.032 in	0.92 in	23.37 mm	Standard	Nickel	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Male	Free Hanging (In-Line)	Blue							Butted Seam	0.25 in	6.35 mm
Panduit Corp DPF14-250FIMB-K	0.81 mm	0.032 in	0.92 in	23.37 mm	Standard	Nickel	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Male	Free Hanging (In-Line)	Blue							Butted Seam	0.25 in	6.35 mm

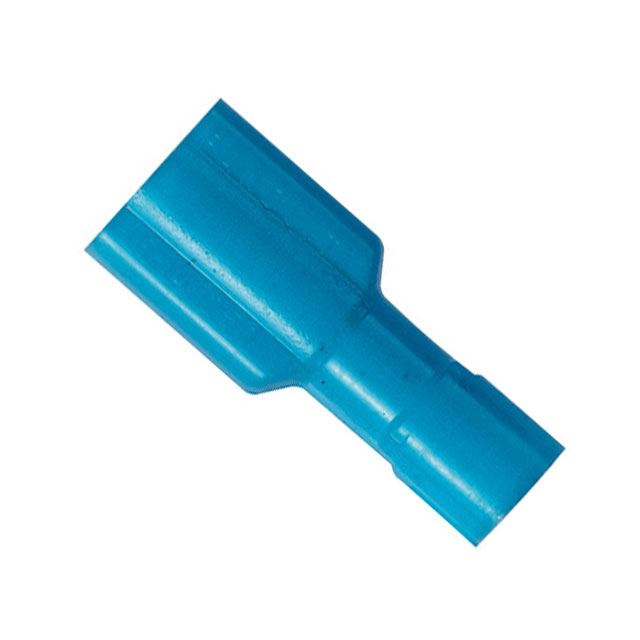

Panduit Corp DPF14-250FIB-M	0.81 mm	0.032 in	0.84 in	21.34 mm	Standard	Tin	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Female	Free Hanging (In-Line)	Blue							Butted Seam	0.25 in	6.35 mm

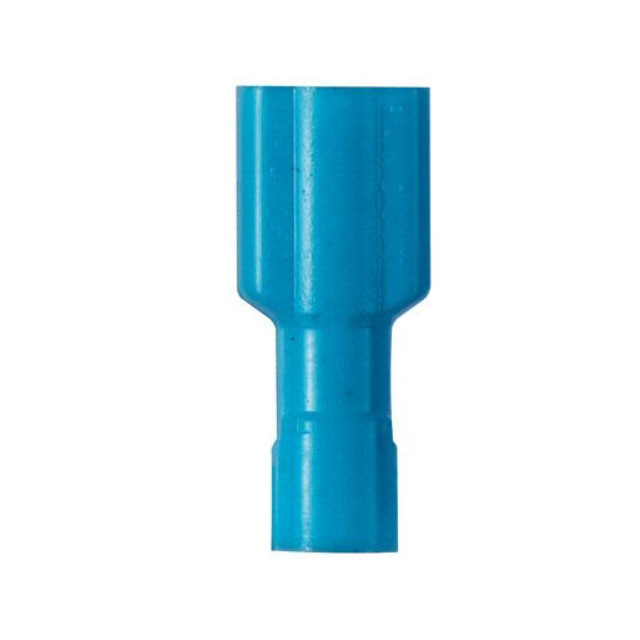

Panduit Corp DPF14-250FIB-C	0.81 mm	0.032 in	0.84 in	21.34 mm	Standard	Tin	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Female	Free Hanging (In-Line)	Blue							Butted Seam	0.25 in	6.35 mm
Panduit Corp DPF14-250FIM-M	0.81 mm	0.032 in	0.9 "	22.86 mm	Standard	Nickel	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Male	Free Hanging (In-Line)	Blue							Butted Seam	0.25 in	6.35 mm
Panduit Corp DPF14-206FIB-3K	0.51 mm	0.02 in	0.78 in	19.81 mm	Standard	Tin	Fully Insulated	14 AWG	16 AWG	Crimp	Brass	Female	Free Hanging (In-Line)	Blue	0.187 " 0.205 in	4.75 mm 5.21 mm	0.09 in	4.06 mm	2.29 mm	0.16 in	Butted Seam
