321035 Series

Catalog

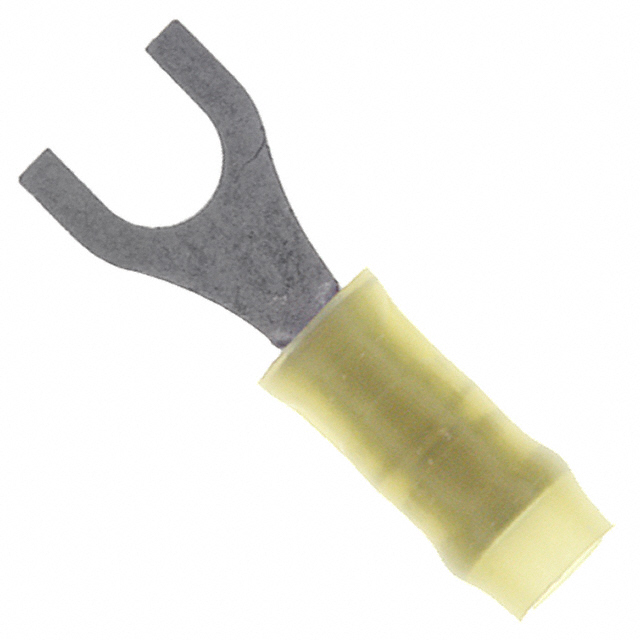

CONN SPADE TERM 22-26AWG #4 YEL

Part	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Wire Gauge [Min]	Wire Gauge [Max]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Min] [diameter]	Tongue Inside Opening [x]	Tongue Inside Opening [x]	Stud/Tab Size	Length - Overall	Length - Overall	Width - Outer Edges [y]	Width - Outer Edges [y]	Insulation	Termination	Contact Material	Material - Insulation	Contact Finish	Terminal Type	Mounting Type	Color	Length - Termination [x]	Length - Termination [x]
TE Connectivity Raychem Cable Protection 2-321035-1	0.211 in	5.36 mm	Serrated Termination	22 AWG	26 AWG	0.082 "	2.08 mm	0.05 in	1.27 mm	3.02 mm	0.119 in	4 Stud	15.93 mm	0.627 in	0.203 in	5.16 mm	Insulated	Crimp	Copper	Nylon Polyamide (PA)	Tin	Standard	Free Hanging (In-Line)	Yellow	0.331 in	8.41 mm
