15DYS850 Series
Manufacturer: IDEAL POWER
Beta
⌘K

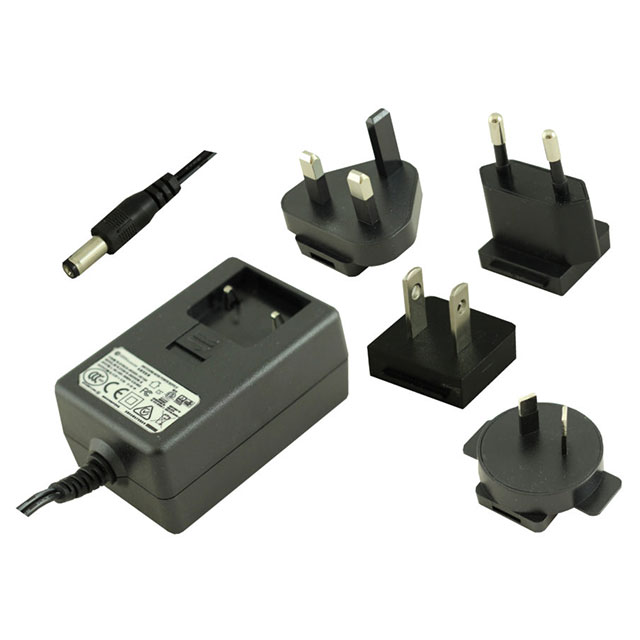

ADAPTER, AC-DC, 1 O/P, 24V, 2.1A ROHS COMPLIANT: YES
| Part | Standard Number | Approval Agency | Power (Watts) | Current - Output (Max) [Max] | Input Connector | Voltage - Input [Min] | Voltage - Input [Max] | No Load Power Consumption | Operating Temperature [Max] | Operating Temperature [Min] | Efficiency | Input Type | Polarization | Voltage - Output | Form | Region Utilized | Output Connector | Output Connector [diameter] | Output Connector [z] | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Cord Length | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 IDEAL POWER | 60950-1 | CB CCC CE FCC GS RCM TUV | 50 W | 2.1 A | Multi-Blade (Included) | 90 VAC | 264 VAC | 210 mW | 40 °C | 0 °C | 88 % | Multi-Blade (Included) | Positive Center | 24 V | Wall Mount (Class II) | International | Barrel Plug | 2.1 mm 5.5 mm | 12 mm | ITE (Commercial) | 52 mm | 1.38 in | 2.05 in | 84.5 mm | 35 mm | 3.33 " | 1.2 m | 47.2 in |
 IDEAL POWER | 60950-1 | CE GS SAA UL | 50 W | 3.36 A | Multi-Blade (Included) | 90 VAC | 264 VAC | 210 mW | 40 °C | 0 °C | 88 % | Multi-Blade (Included) | Positive Center | 15 VDC | Wall Mount (Class II) | International | Barrel Plug | 2.1 mm 5.5 mm | 12 mm | ITE (Commercial) | 52 mm | 1.38 in | 2.05 in | 84.5 mm | 35 mm | 3.33 " | 1.2 m | 47.2 in |
