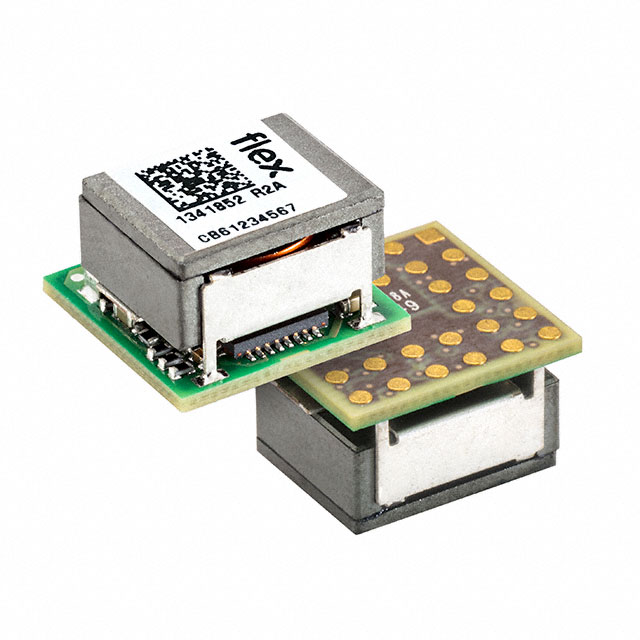

BMR461 Series

Catalog

DC DC CONVERTER 0.6-5V 60W

Part	Type	Package / Case	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Number of Outputs	Approval Agency	Power (Watts)	Current - Output (Max) [Max]	Applications	Control Features	Mounting Type	Standard Number	Features	Operating Temperature [Max]	Operating Temperature [Min]	Efficiency	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Output 1 [Min] [custom]	Voltage - Output 1 [Max] [custom]	Voltage - Output 1 [Min]	Voltage - Output 1 [Max]
Flex Power Modules BMR4613101/001	Non-Isolated PoL Module Digital	32-BLGA Module	4.5 V	14 V	1	CB CSA IEC TUV UL	60 W	12 A	ITE (Commercial)	Active Low Enable	Surface Mount	62368-1	Adjustable Output PMBus™ Remote On/Off Remote Sense	120 °C	-40 °C	95.8 %	12.2 mm	0.31 "	0.48 in	8 mm	12.2 mm	0.48 in	0.6 V	5 V
Flex Power Modules BMR4614001/001	Non-Isolated PoL Module Digital	32-BLGA Module	4.5 V	14 V	1	CB CSA IEC TUV UL	32 W	18 A	ITE (Commercial)	Active Low Enable	Surface Mount	62368-1	Adjustable Output PMBus™ Remote On/Off Remote Sense	120 °C	-40 °C	91.6 %	12.2 mm	0.31 "	0.48 in	8 mm	12.2 mm	0.48 in			0.6 V	1.8 V
Flex Power Modules BMR4613001/001	Non-Isolated PoL Module Digital	32-BLGA Module	4.5 V	14 V	1	CB CSA IEC TUV UL	60 W	12 A	ITE (Commercial)	Active Low Enable	Surface Mount	62368-1	Adjustable Output PMBus™ Remote On/Off Remote Sense	120 °C	-40 °C	95.8 %	12.2 mm	0.31 "	0.48 in	8 mm	12.2 mm	0.48 in	0.6 V	5 V
Flex Power Modules BMR4612001/001	Non-Isolated PoL Module Digital	32-BLGA Module	4.5 V	14 V	1	CB CSA IEC TUV UL	30 Watts	6 A	ITE (Commercial)	Active Low Enable	Surface Mount	62368-1	Adjustable Output PMBus™ Remote On/Off Remote Sense	120 °C	-40 °C	95.6 %	12.2 mm	0.31 "	0.48 in	8 mm	12.2 mm	0.48 in	0.6 V	5 V
Flex Power Modules BMR4612101/001	Non-Isolated PoL Module Digital	32-BLGA Module	4.5 V	14 V	1	CB CSA IEC TUV UL	30 Watts	6 A	ITE (Commercial)	Active Low Enable	Surface Mount	62368-1	Adjustable Output PMBus™ Remote On/Off Remote Sense	120 °C	-40 °C	95.6 %	12.2 mm	0.31 "	0.48 in	8 mm	12.2 mm	0.48 in	0.6 V	5 V
Flex Power Modules BMR4614101/001	Non-Isolated PoL Module Digital	32-BLGA Module	4.5 V	14 V	1	CB CSA IEC TUV UL	32 W	18 A	ITE (Commercial)	Active Low Enable	Surface Mount	62368-1	Adjustable Output PMBus™ Remote On/Off Remote Sense	120 °C	-40 °C	91.6 %	12.2 mm	0.31 "	0.48 in	8 mm	12.2 mm	0.48 in			0.6 V	1.8 V
