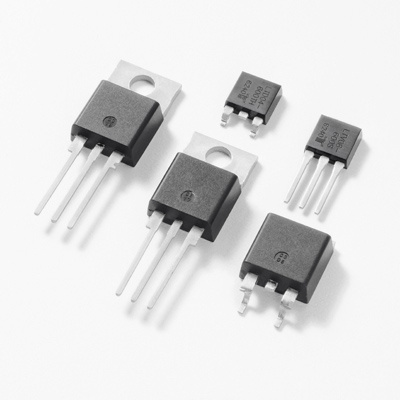

QK006LH4TP Series

Altnstr 1000V 6A 35-35-35 mA TO220 Iso

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Altnstr 1000V 6A 35-35-35 mA TO220 Iso

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current - On State (It (RMS)) (Max)	Current - Hold (Ih) (Max) [Max]	Triac Type	Voltage - Off State	Package / Case	Current - Gate Trigger (Igt) (Max) [Max]	Configuration	Current - Non Rep. Surge 50, 60Hz (Itsm) [Min]	Current - Non Rep. Surge 50, 60Hz (Itsm) [Max]	Mounting Type	Voltage - Gate Trigger (Vgt) (Max) [Max]	Current - Non Rep. Surge 50, 60Hz (Itsm)	Supplier Device Package	Voltage - Gate Trigger (Vgt) (Max)
Littelfuse/Commercial Vehicle Products QK006R5	-40 °C	125 ¯C	6 A	50 mA	Standard	1 kV	TO-220-3	50 mA	Single	65 A	80 A	Through Hole	1.3 V
Littelfuse/Commercial Vehicle Products QK006NH4TP	-40 °C	125 ¯C	6 A	35 mA	Alternistor - Snubberless	1 kV	D2PAK (2 Leads + Tab) TO-263-3 TO-263AB	35 mA	Single			Surface Mount	1.3 V	80 A 85 A	TO-263 (D2PAK)
Littelfuse/Commercial Vehicle Products QK006DH3RP	-40 °C	125 ¯C	6 A	15 mA	Alternistor - Snubberless	1 kV	DPAK (2 Leads + Tab) SC-63 TO-252-3	10 mA	Single	55 A	65 A	Surface Mount			TO-252 (DPAK)	2.5 V
Littelfuse/Commercial Vehicle Products QK006VH4	-40 °C	125 ¯C	6 A	35 mA	Alternistor - Snubberless	1 kV	IPAK TO-251-3 Short Leads TO-251AA	35 mA	Single	55 A	65 A	Through Hole	1.3 V		TO-251 (V-Pak/I-Pak)
Littelfuse/Commercial Vehicle Products QK006RH4TP	-40 °C	125 ¯C	6 A	35 mA	Alternistor - Snubberless	1 kV	TO-220-3	35 mA	Single			Through Hole	1.3 V	80 A 85 A	TO-220AB
Littelfuse/Commercial Vehicle Products QK006LH4TP	-40 °C	125 ¯C	6 A	35 mA	Alternistor - Snubberless	1 kV	TO-220-3 Full Pack Isolated Tab	35 mA	Single			Through Hole	1.3 V	80 A 85 A	ITO-220AB
Littelfuse/Commercial Vehicle Products QK006L5TP	-40 °C	125 ¯C	6 A	50 mA	Standard	1 kV	TO-220-3 Full Pack Isolated Tab	50 mA	Single	65 A	80 A	Through Hole	1.3 V		ITO-220AB
Littelfuse/Commercial Vehicle Products QK006DH4	-40 °C	125 ¯C	6 A	35 mA	Alternistor - Snubberless	1 kV	DPAK (2 Leads + Tab) SC-63 TO-252-3	35 mA	Single	55 A	65 A	Surface Mount	1.3 V		TO-252 (DPAK)
Littelfuse/Commercial Vehicle Products QK006VH4TP	-40 °C	125 ¯C	6 A	35 mA	Alternistor - Snubberless	1 kV	IPAK TO-251-3 Short Leads TO-251AA	35 mA	Single	55 A	65 A	Through Hole	1.3 V		TO-251 (V-Pak/I-Pak)

Catalog

Altnstr 1000V 6A 35-35-35 mA TO220 Iso

Key Features

• RoHS compliant

• Glass — passivated junctions

• Voltage capability up to 1000 V

• Surge capability up to 85 A

• Electrically isolated "L - Package" is UL recognized for 2500Vrms

• Solid-state switching eliminates arcing or contact bounce that create voltage transients

• No contacts to wear out from reaction of switching events

• Restricted (or limited) RFI generation, depending on activation point of sine wave

• Requires only a small gate activation pulse in each half-cycle

Description

6 Amp bi-directional solid state switch series is designed for AC switching and phase control applications such as motor speed and temperature modulation controls, lighting controls, and static switching relays.Sensitive type devices guarantee gate control in Quadrants I & IV needed for digital control circuitry.Standard type devices normally operate in Quadrants I & III triggered from AC line.Alternistor type devices only operate in quadrants I, II, & III and are used in circuits requiring high dv/dt capability.
