HLMP-K640 Series

Catalog

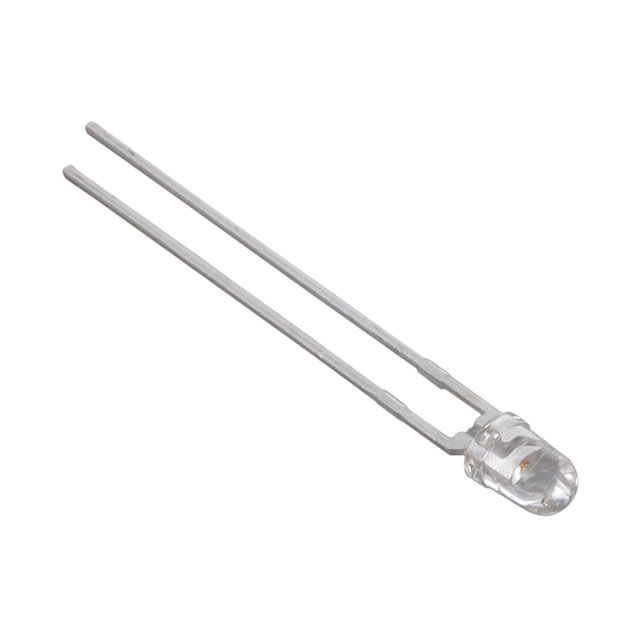

LED GREEN CLEAR T-1 T/H

Part	Lens Size	Lens Size	Mounting Type	Voltage - Forward (Vf) (Typ)	Current - Test	Supplier Device Package	Lens Style	Configuration	Millicandela Rating	Wavelength - Dominant	Viewing Angle	Lens Transparency	Package / Case	Wavelength - Peak	Color	Height (Max) [Max] [z]
Broadcom Limited HLMP-K640	3 mm	T-1	Through Hole	2.2 V	20 mA	T-1	Round with Domed Top	Standard	21 mcd	560 nm	24 °	Clear	Radial	558 nm	Green	6.35 mm
Broadcom Limited HLMP-K640-D00EG	3 mm	T-1	Through Hole	2.2 V	20 mA	T-1	Round with Domed Top	Standard	21 mcd	560 nm	24 °	Clear	Radial	558 nm	Green	6.35 mm
Broadcom Limited HLMP-K640-FGN00	3 mm	T-1	Through Hole	2.2 V	20 mA	T-1	Round with Domed Top	Standard	20 mcd	560 nm	24 °	Clear	Radial	558 nm	Green	6.35 mm
