2102353 Series

Catalog

CONN PLUG FMALE 8POS GOLD CRIMP

Part	Shell Finish	Connector Type	Contact Material	Shielding	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Color	Primary Material	Shell Size - Insert	Orientation	Ingress Protection	Insert Material	Contact Finish - Mating	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Shell Material	Voltage Rating	Number of Positions	Applications	Current Rating (Amps)

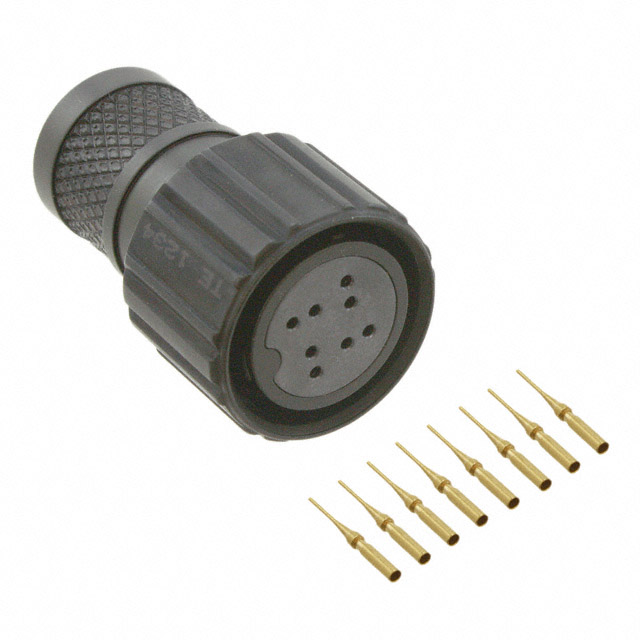

TE Connectivity Aerospace, Defense and Marine 2102353-6	Black Zinc Nickel	Female Sockets Plug	Beryllium Copper	Shielded	Crimp	170 °C	-65 ░C	Black	Metal	8	B	IP67 - Dust Tight Waterproof	Thermoplastic	Gold	Backshell	0.5 µm	19.7 µin	Free Hanging (In-Line)	Aluminum	500 VAC	8	Aviation Marine Military	5 A

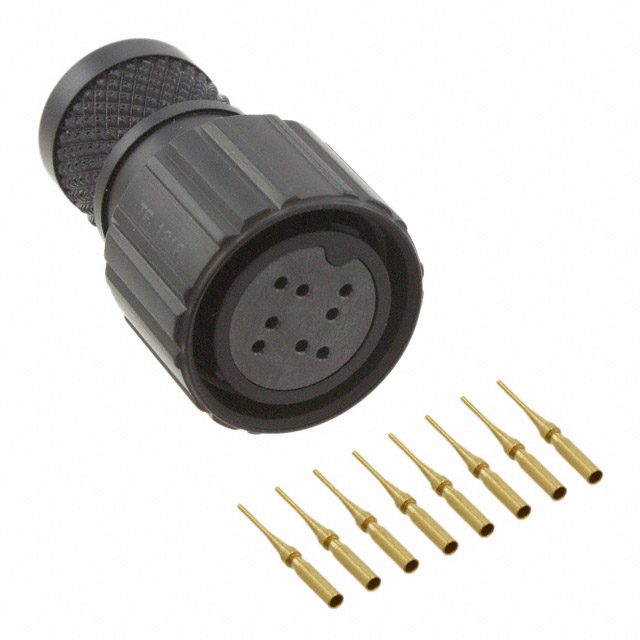

TE Connectivity Aerospace, Defense and Marine 2102353-2	Black Zinc Nickel	Female Sockets Plug	Beryllium Copper	Shielded	Solder	170 °C	-65 ░C	Black	Metal	8	N	IP67 - Dust Tight Waterproof	Thermoplastic	Gold	Backshell	0.5 µm	19.7 µin	Free Hanging (In-Line)	Aluminum	500 VAC	8	Aviation Marine Military	5 A
TE Connectivity Aerospace, Defense and Marine 2102353-7
TE Connectivity Aerospace, Defense and Marine 2102353-8

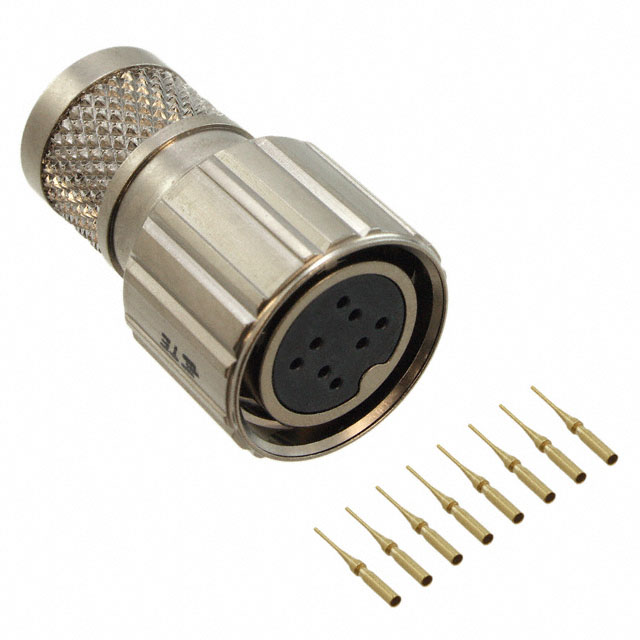

TE Connectivity Aerospace, Defense and Marine 2102353-1	Electroless Nickel	Female Sockets Plug	Beryllium Copper	Shielded	Solder	170 °C	-65 ░C		Metal	8	N	IP67 - Dust Tight Waterproof	Thermoplastic	Gold	Backshell	0.5 µm	19.7 µin	Free Hanging (In-Line)	Aluminum	500 VAC	8	Aviation Marine Military	5 A
TE Connectivity Aerospace, Defense and Marine 1-2102353-0
