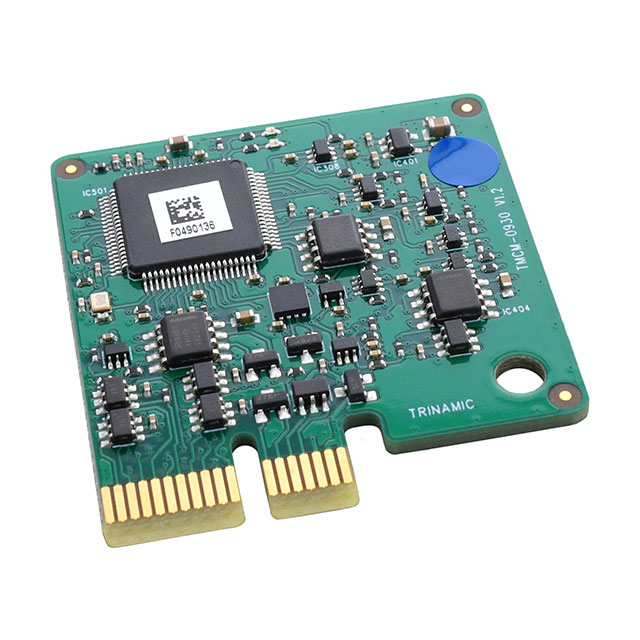

TMCM-0930 Series

Plug-In controller module to control up to four ADI Trinamic motor driver modules using TMCL commands.

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

Plug-In controller module to control up to four ADI Trinamic motor driver modules using TMCL commands.

Part	Number of Motors	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Voltage - Load [Min]	Voltage - Load [Max]	Motor Type	Voltage - Supply	Interface	Type	Current - Output
Analog Devices Inc./Maxim Integrated TMCM-0930-TMCL	4	-30 ░C	60 °C	Chassis Mount	0 V	5 V	Stepper	5 VDC	CAN RS-485 USB	Board	20 mA

Catalog

Plug-In controller module to control up to four ADI Trinamic motor driver modules using TMCL commands.

Description

The TMCM-0930-TMCL is a slot type microcontroller module that can control up to four ADI Trinamic slot type motor driver modules using TMCL commands. The stepper and/or BLDC motor modules are controlled by TMCM-0930-TMCL on a special slot type baseboard while using RS485 bus and some control signals throughout the whole system. TMCM-0930-TMCL is equipped with additional RS485 interface, a CAN bus interface, and a USB interface for external communication. The TMCM-0930-TMCL can also store and execute TMCL programs.APPLICATIONSLaboratory AutomationManufacturingSemiconductor HandlingRoboticsFactory AutomationTest & MeasurementLife ScienceBiotechnologyLiquid Handling
