3RP2025 Series

Manufacturer: Siemens

Catalog

RELAY TIME DELAY 100SEC 3A 250V

Part	Mounting Type	Contact Rating @ Voltage	Relay Type	Function	Voltage - Supply [Max]	Voltage - Supply [Min]	Voltage - Supply	Voltage - Supply	Circuit	Timing Adjustment Method	Timing Initiate Method	Delay Time [Max]	Delay Time [Min]	Termination Style
Siemens 3RP20251AQ30	Chassis Mount DIN Rail	3 A 250 VAC	Mechanical Relay	On-Delay	127 VAC/DC	100 VAC	24 VAC/DC	24 VDC	SPDT (1 Form C)	Screwdriver Slot	Input Voltage	100 Sec	0.05 Sec	Screw Terminal
Siemens 3RP20252AQ30	Chassis Mount DIN Rail	3 A 250 VAC	Mechanical Relay	On-Delay	127 VAC/DC	100 VAC	24 VAC/DC	24 VDC	SPDT (1 Form C)	Screwdriver Slot	Input Voltage	100 Sec	0.05 Sec	Spring Terminal

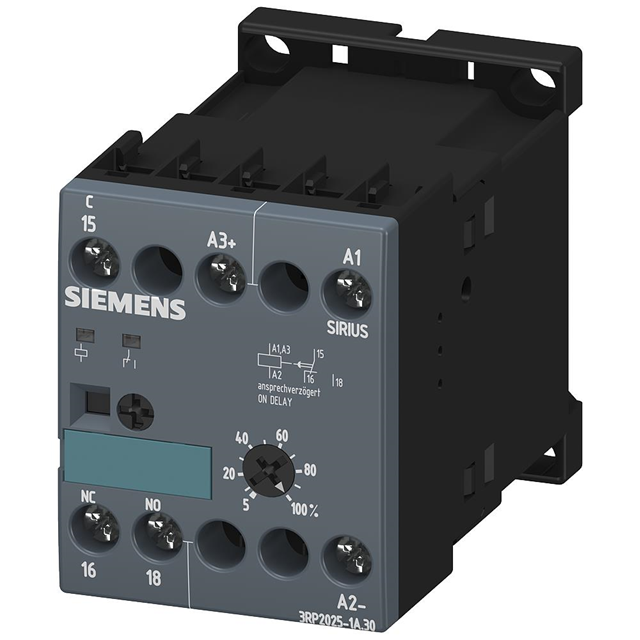

Siemens 3RP20251AP30	Chassis Mount DIN Rail	3 A 250 VAC	Mechanical Relay	On-Delay	240 VAC	200 VAC	24 VAC/DC		SPDT (1 Form C)	Screwdriver Slot	Input Voltage	100 Sec	0.05 Sec	Screw Terminal
