102694 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

CONN RCPT 10P IDC 22-26AWG GOLD

Part	Features	Wire Type	Cable Termination	Mounting Type	Row Spacing	Row Spacing	Color	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Contact Finish	Number of Rows [custom]	Connector Type	Pitch	Pitch	Wire Gauge [Max]	Wire Gauge [Min]	Contact Type	Fastening Type
TE Connectivity AMP Connectors 1-102694-0	Closed End	Discrete Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 mm	0.1 "	Black	30 Áin	0.76 Ám	10	Gold	2	Receptacle	0.1 "	2.54 mm	26 AWG	22 AWG	Female Socket
TE Connectivity AMP Connectors 5-102694-1	Closed End	Discrete Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 mm	0.1 "	Black	30 Áin	0.76 Ám	6	Gold	2	Receptacle	0.1 "	2.54 mm	26 AWG	22 AWG	Female Socket

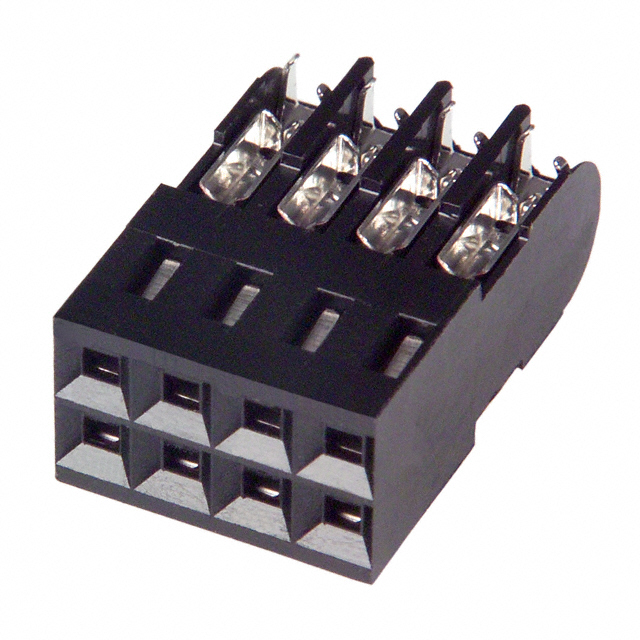

TE Connectivity AMP Connectors 5-102694-2	Closed End	Discrete Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 mm	0.1 "	Black	30 Áin	0.76 Ám	8	Gold	2	Receptacle	0.1 "	2.54 mm	26 AWG	22 AWG	Female Socket
TE Connectivity AMP Connectors 5-102694-8	Closed End	Discrete Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 mm	0.1 "	Black	30 Áin	0.76 Ám	20	Gold	2	Receptacle	0.1 "	2.54 mm	26 AWG	22 AWG	Female Socket

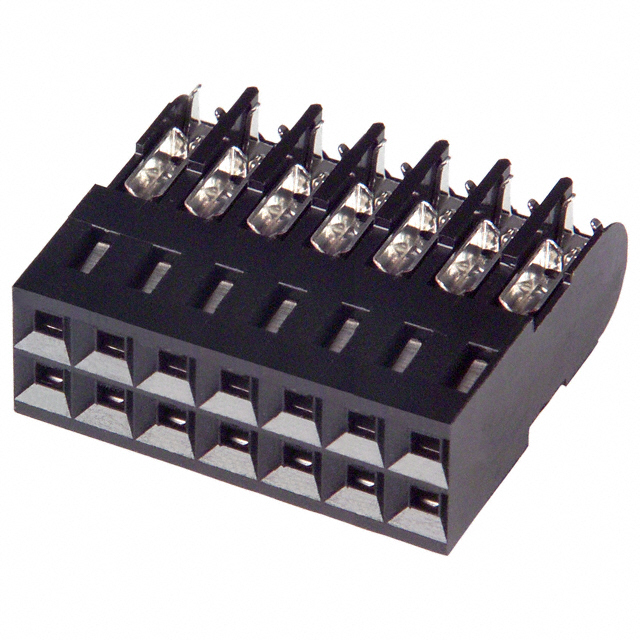

TE Connectivity AMP Connectors 102694-5	Closed End	Discrete Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 mm	0.1 "	Black	30 Áin	0.76 Ám	14	Gold	2	Receptacle	0.1 "	2.54 mm	26 AWG	22 AWG	Female Socket

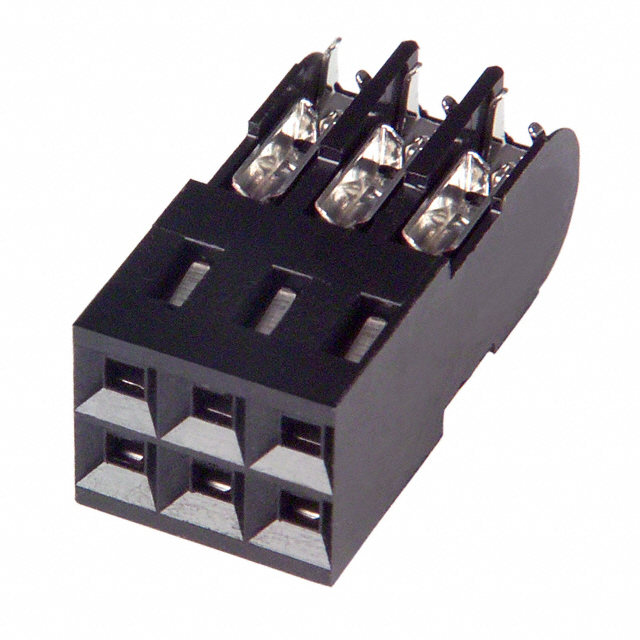

TE Connectivity AMP Connectors 102694-1	Closed End	Discrete Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 mm	0.1 "	Black	30 Áin	0.76 Ám	6	Gold	2	Receptacle	0.1 "	2.54 mm	26 AWG	22 AWG	Female Socket
TE Connectivity AMP Connectors 5-102694-5	Closed End	Discrete Ribbon Cable	IDC	Free Hanging (In-Line)	2.54 mm	0.1 "	Black	30 Áin	0.76 Ám	14	Gold	2	Receptacle	0.1 "	2.54 mm	26 AWG	22 AWG	Female Socket	Push-Pull
