BLF6G22 Series

Catalog

RF MOSFET LDMOS 28V CDFM2

Part	Gain	Supplier Device Package	Mounting Type	Voltage - Rated	Frequency [Min]	Frequency [Max]	Power - Output	Voltage - Test	Package / Case	Current Rating (Amps)	Current - Test	Configuration
Ampleon USA Inc. BLF6G22-45,135	18.5 dBi	CDFM2	Chassis Mount	65 V	2.11 GHz	2.17 GHz	2.5 W	28 V	SOT-608A
Ampleon USA Inc. BLF6G22LS-130,112	17 dBi	SOT502B	Chassis Mount	65 V	2.11 GHz	2.17 GHz	30 W	28 V	SOT-502B	34 A	1.1 A
Ampleon USA Inc. BLF6G22LS-100,118	18.2 dBi	SOT502B	Chassis Mount	65 V	2.11 GHz	2.17 GHz	25 W	28 V	SOT-502B	29 A	950 mA
Ampleon USA Inc. BLF6G22LS-130,118	17 dBi	SOT502B	Chassis Mount	65 V	2.11 GHz	2.17 GHz	30 W	28 V	SOT-502B	34 A	1.1 A

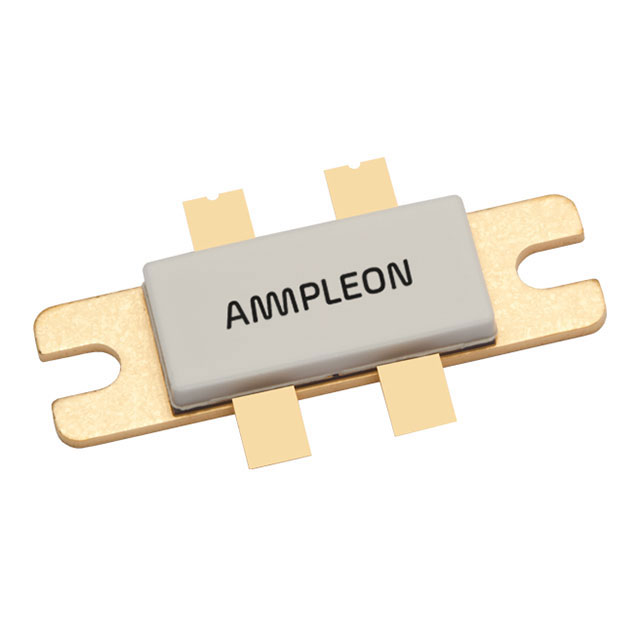

Ampleon USA Inc. BLF6G22L-40BN,112	19 dB	CDFM6	Chassis Mount	65 V	2.11 GHz	2.17 GHz	2.5 W	28 V	SOT-1112A		345 mA	Common Source Dual
Ampleon USA Inc. BLF6G22L-40P,118	19 dB	LDMOST	Chassis Mount	65 V	2.11 GHz	2.17 GHz	13.5 W	28 V		16 A	410 mA	Common Source Dual
Ampleon USA Inc. BLF6G22L-40P,112	19 dB	LDMOST	Chassis Mount	65 V	2.11 GHz	2.17 GHz	13.5 W	28 V		16 A	410 mA	Common Source Dual
Ampleon USA Inc. BLF6G22-180PN,112	17.5 dBi	SOT539A	Chassis Mount	65 V	2.11 GHz	2.17 GHz	50 W	32 V	SOT-539A		1.6 A	Common Source Dual
Ampleon USA Inc. BLF6G22LS-100,112	18.2 dBi	SOT502B	Chassis Mount	65 V	2.11 GHz	2.17 GHz	25 W	28 V	SOT-502B	29 A	950 mA
Ampleon USA Inc. BLF6G22S-45,112	18.5 dBi	CDFM2		65 V	2.11 GHz	2.17 GHz	2.5 W	28 V	SOT-608B
