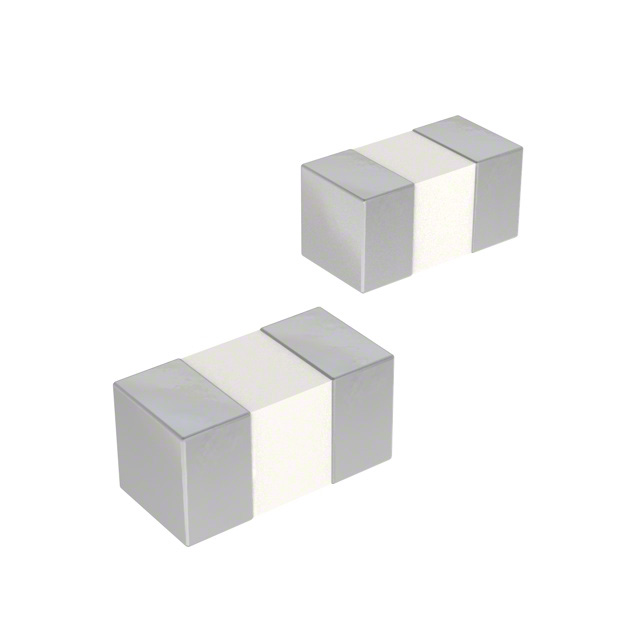

CI160808 Series

Catalog

MULTILAYER INDUCTOR, 5.6 NH, 0.29 OHM, 2.7 GHZ, 300 MA, 0603 [1608 METRIC], CI160808 SERIES

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Type	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Material - Core	Current Rating (Amps)	Inductance Frequency - Test	Mounting Type	Inductance	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Supplier Device Package	Frequency - Self Resonant [custom]	Package / Case	Package / Case	Q @ Freq	DC Resistance (DCR)	DC Resistance (DCR) [Max]	Frequency - Self Resonant	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. CI160808-5N6D	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	5.6 nH	0.3 nH	-55 C	125 °C	Unshielded	0603 (1608 Metric)	2.7 GHz	1608 Metric	0603	10 100 MHz	290 mOhm
Bourns Inc. CI160808-R18J	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.2 A	50 MHz	Surface Mount	180 nH	5 %	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603	8 50 MHz		2.7 Ohm	400 MHz
Bourns Inc. CI160808-68NJ	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	68 nH	5 %	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603	10 100 MHz		1.2 Ohm	700 MHz
Bourns Inc. CI160808-6N8J	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	6.8 nH	5 %	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603	10 100 MHz		300 mOhm	2.6 GHz
Bourns Inc. CI160808-1N8D	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	1.8 nH	0.3 nH	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603			120 mOhm	3.8 GHz	8	100 MHz
Bourns Inc. CI160808-82NJ	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	82 nH	5 %	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603	10 100 MHz		1.5 Ohm	600 MHz
Bourns Inc. CI160808-27NJ	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	27 nH	5 %	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603	10 100 MHz			1.1 GHz
Bourns Inc. CI160808-5N6DC	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	5.6 nH	0.3 nH	-55 C	125 °C	Unshielded	0603 (1608 Metric)	2.7 GHz	1608 Metric	0603	10 100 MHz	290 mOhm
Bourns Inc. CI160808-3N3D	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	3.3 nH	0.3 nH	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603	10 100 MHz		220 mOhm	3.2 GHz
Bourns Inc. CI160808-R10J	0.95 mm	0.037 in	Multilayer	0.031 in	1.6 mm	0.8 mm	0.063 "	Ceramic	0.3 A	100 MHz	Surface Mount	100 nH	5 %	-55 C	125 °C	Unshielded	0603 (1608 Metric)		1608 Metric	0603	10 100 MHz		1.7 Ohm	500 MHz
