M2024BB Series

Catalog

SWITCH TOGGLE SP3T 0.4VA 28V

Part	Electrical Life	Actuator Material	Bushing Thread	Switch Function	Panel Cutout Dimensions [diameter]	Voltage Rating - DC	Actuator Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Circuit	Mounting Type	Actuator Length [x]	Features	Illumination	Termination Style

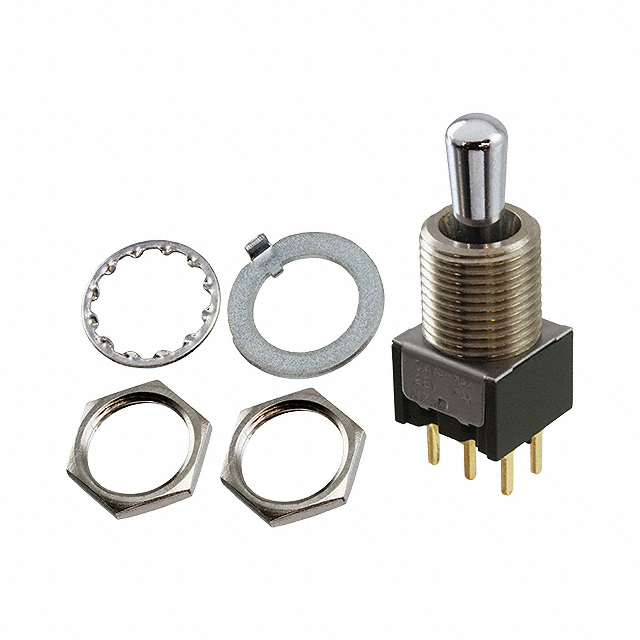

NKK Switches M2024BB1G03	50000 Cycles	Brass Chrome Plated	M12 x 1	On-On-On	12.5 mm	28 V	Standard Round	85 °C	-30 ░C	0.4 VA	28 V	SP3T	Panel Mount	11.5 mm	Jumper needed to achieve triple throw	Non-Illuminated	PC Pin
NKK Switches M2024BB1W01-AT402S	25000 Steps	Brass Chrome Plated	M12 x 1	On-On-On	12.5 mm	30 V	Standard Round	85 °C	-30 ░C	3 A 6 A	125 V	SP3T	Panel Mount	11.5 mm	Jumper needed to achieve triple throw	Non-Illuminated	Solder Lug

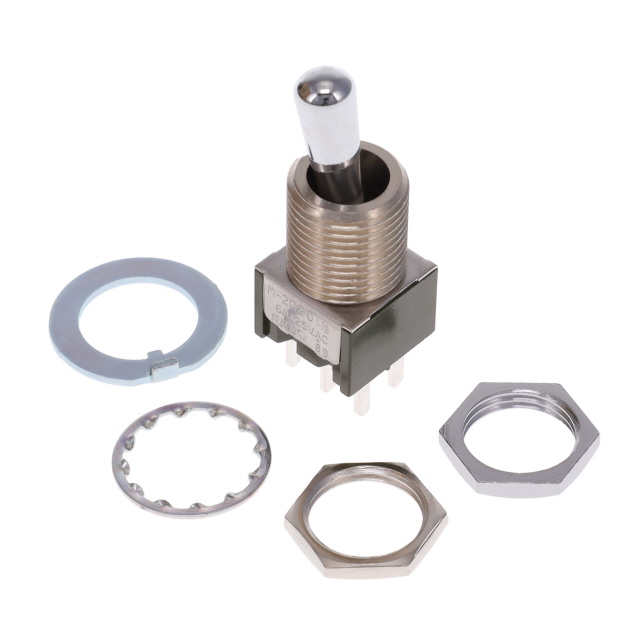

NKK Switches M2024BB1W02	25000 Steps	Brass Chrome Plated	M12 x 1	On-On-On	12.5 mm	30 V	Standard Round	85 °C	-30 ░C	3 A 6 A	125 V	SP3T	Panel Mount	11.5 mm	Jumper needed to achieve triple throw	Non-Illuminated	Quick Connect - 0.062" (1.5mm)
NKK Switches M2024BB1UW01	25000 Steps	Brass Chrome Plated	M12 x 1	On-On-On	12.5 mm	30 V	Standard Round	85 °C	-30 ░C	3 A 6 A	125 V	SP3T	Panel Mount	11.5 mm	Gold Actuator Jumper needed to achieve triple throw	Non-Illuminated	Solder Lug
NKK Switches M2024BB1W02-AT402S	25000 Steps	Brass Chrome Plated	M12 x 1	On-On-On	12.5 mm	30 V	Standard Round	85 °C	-30 ░C	3 A 6 A	125 V	SP3T	Panel Mount	11.5 mm	Jumper needed to achieve triple throw	Non-Illuminated	Quick Connect - 0.062" (1.5mm)
NKK Switches M2024BB1W01	25000 Steps	Brass Chrome Plated	M12 x 1	On-On-On	12.5 mm	30 V	Standard Round	85 °C	-30 ░C	3 A 6 A	125 V	SP3T	Panel Mount	11.5 mm	Jumper needed to achieve triple throw	Non-Illuminated	Solder Lug

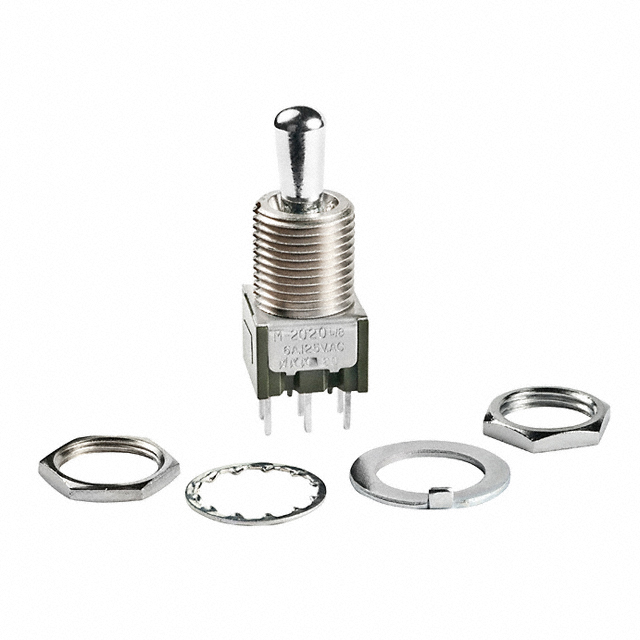

NKK Switches M2024BB1W03	25000 Steps	Brass Chrome Plated	M12 x 1	On-On-On	12.5 mm	30 V	Standard Round	85 °C	-30 ░C	3 A 6 A	125 V	SP3T	Panel Mount	11.5 mm	Jumper needed to achieve triple throw	Non-Illuminated	PC Pin
