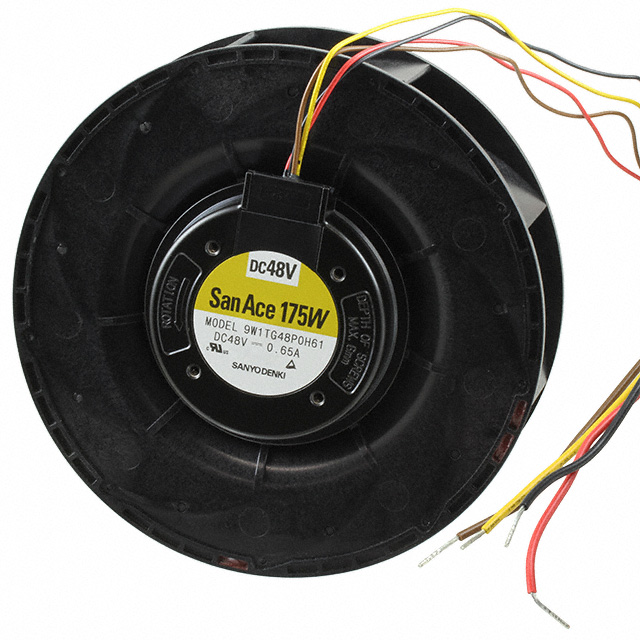

9W1TG48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K
FAN: DC; AXIAL; 48VDC; Ø175X69MM; 540M3/H; 64DBA; BALL; 3100RPM
| Part | Current Rating (Amps) | Air Flow | Air Flow | Material - Blade | Lifetime @ Temp. | Voltage Range [Min] | Voltage Range [Max] | Material - Frame | Features | Weight | Weight | Approval Agency | Size / Dimension | Size / Dimension [diameter] | Ingress Protection | Static Pressure | Static Pressure | Operating Temperature [Min] | Operating Temperature [Max] | Width [y] | RPM | Bearing Type | Termination | Noise | Fan Type | Voltage - Rated | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 650 mA | 318 CFM | 8.9 m³/min | Plastic | Varies Based on Temperature | 36 VDC | 60 V | Aluminum | PWM Control Speed Sensor (Tach) | 1.7 lbs | 771.1 g | CSA TUV UL | Round | 175 mm | IP54 - Dust Protected Water Resistant | 358.9 Pa | 1.441 in H2O | -20 ░C | 70 °C | 69 mm | 3100 RPM | Ball | 4 Wire Leads | 64 dB(A) | Motorized Impellers | 48 VDC | 31.2 W |
