001548 Series
Manufacturer: Molex
Beta
⌘K

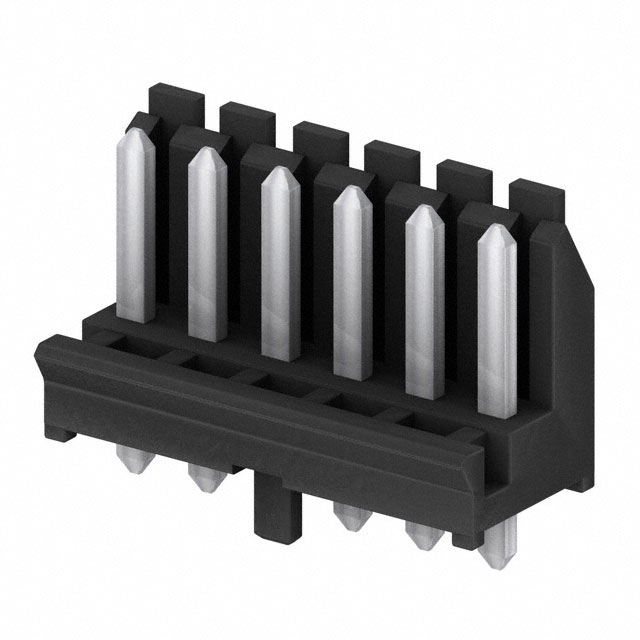

CONN HEADER VERT 6POS 3.96MM
| Part | Applications | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Length - Mating | Contact Length - Mating | Shrouding | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Material Flammability Rating | Contact Material | Contact Finish - Post | Mounting Type | Insulation Color | Overall Contact Length | Overall Contact Length | Number of Positions Loaded | Style | Features | Insulation Material | Termination | Contact Type | Number of Rows | Pitch - Mating | Pitch - Mating | Contact Shape | Number of Positions | Fastening Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Contact Length - Post [custom] | Contact Length - Post | Insulation Height [z] | Insulation Height [z] | Connector Type | Current Rating (Amps) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Automotive General Purpose Industrial Medical Telecommunications | 200 µin | 5.08 µm | 0.365 in | 9.27 mm | Shrouded - 1 Wall | 5.08 µm | 200 µin | UL94 V-0 | Brass | Tin | Through Hole | Black | 16.64 mm | 0.655 in | All | Board to Cable/Wire | Board Guide | Polyester Glass Filled | Solder | Male Pin | 1 | 3.96 mm | 0.156 in | Rectangular | 6 | Push-Pull | -40 C | 105 ░C | 250 V | 0.11 in | 2.79 mm | 14.48 mm | 0.57 " | Header | 5 A |
