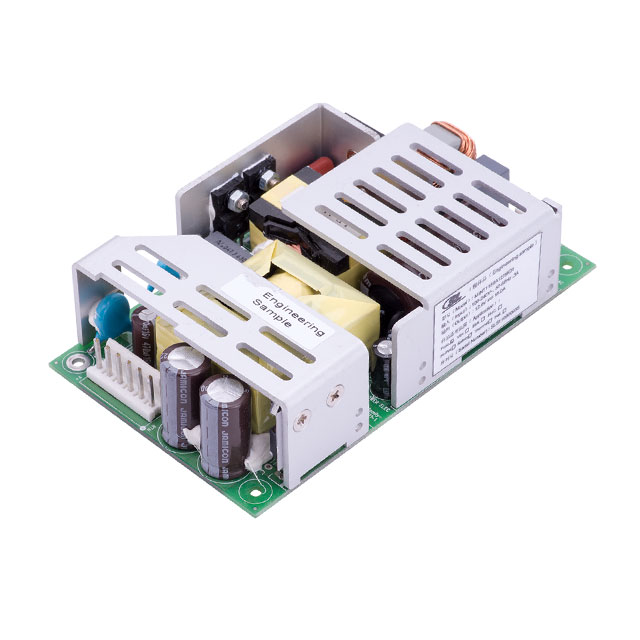

MINT1180 Series

Manufacturer: SL POWER / Advanced Energy

Catalog

AC/DC CONVERTER 15V 180W

Part	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Output 1	Current - Output 1	Type	Applications	Efficiency	Approval Agency	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Power (Watts)	Voltage - Output 1 [custom]
SL POWER / Advanced Energy MINT1180A1575K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm	15 V	12 A	Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W

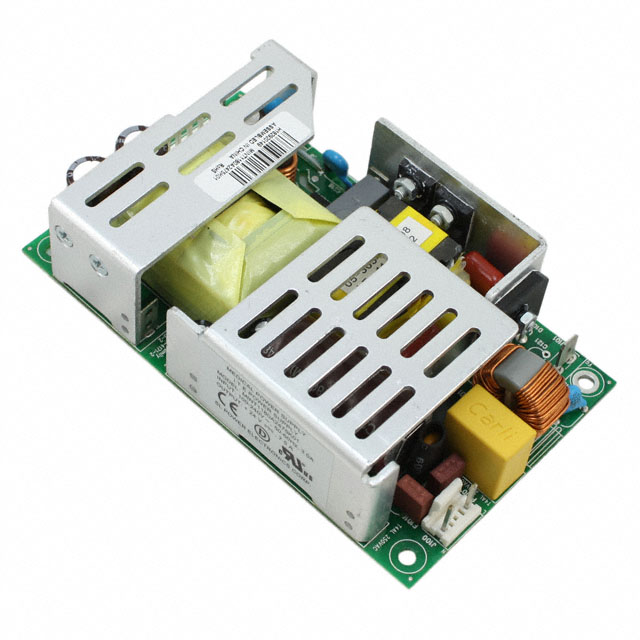

SL POWER / Advanced Energy MINT1180A2475K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm	24 V		Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W
SL POWER / Advanced Energy MINT1180A1275K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm	12 V	15 A	Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W
SL POWER / Advanced Energy MINT1180A3275K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm	32 V	5.62 A	Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W
SL POWER / Advanced Energy MINT1180A2875K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm	28 V		Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W
SL POWER / Advanced Energy MINT1180A3675K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm		5 A	Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W	36 V
SL POWER / Advanced Energy MINT1180A1875K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm	18 V	10 A	Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W
SL POWER / Advanced Energy MINT1180A4875K01	1	70 °C	-10 °C	Chassis Mount	Universal Input	1.3 in	5 "	127 mm	76.2 mm	3 "	31.8 mm	48 V	3.8 A	Open Frame	Medical	88 %	CE	4000 V	100 VAC	240 VAC	180 W
