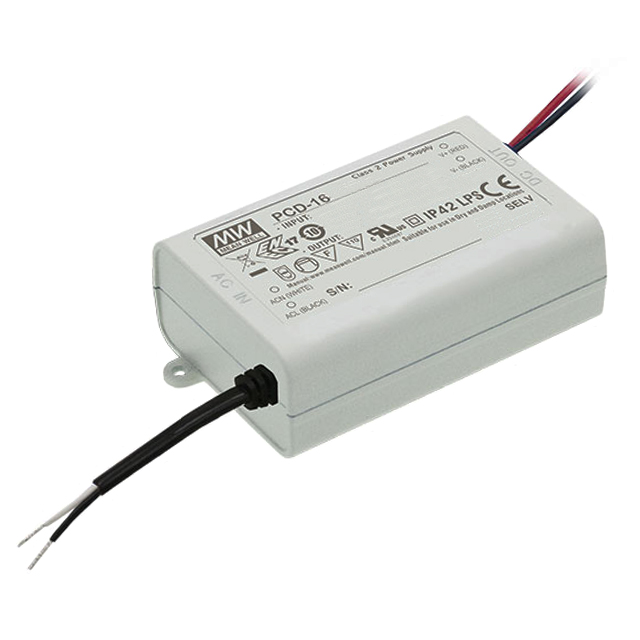

PCD-16 Series

Catalog

LED DRIVER CC AC/DC 8-12V 1.4A

Part	Mounting Type	Voltage - Input (Max) [Max]	Voltage - Output [Min]	Voltage - Output [Max]	Topology	Type	Termination Style	Voltage - Isolation	Dimming	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Input (Min) [Min]	Current - Output (Max) [Max]	Features	Approval Agency	Number of Outputs	Ratings	Efficiency	Power (Watts)	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]
MEAN WELL USA Inc. PCD-16-1400B	Chassis Mount	295 VAC	8 V	12 V	AC DC Converter	Constant Current	Wire Leads	3750 VDC	TRIAC	-30 ░C	60 °C	180 VAC	1.4 A	OTP SCP	CB CE cURus	1	IP42	80 %	17 W	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm
MEAN WELL USA Inc. PCD-16-1050A	Chassis Mount	135 VAC	12 V	16 V	AC DC Converter	Constant Current	Wire Leads	3750 VDC	TRIAC	-30 ░C	60 °C	90 VAC	1.05 A	OTP SCP		1	IP42	80.5 %	17 W	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm
MEAN WELL USA Inc. PCD-16-350A	Chassis Mount	135 VAC	24 V	48 V	AC DC Converter	Constant Current	Wire Leads	3750 VDC	TRIAC	-30 ░C	60 °C	90 VAC	350 mA	OTP SCP		1	IP42		17 W	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm
MEAN WELL USA Inc. PCD-16-1050B	Chassis Mount	295 VAC	12 V	16 V	AC DC Converter	Constant Current	Wire Leads	3750 VDC	TRIAC	-30 ░C	60 °C	180 VAC	1.05 A	OTP SCP	CB CE cURus	1	IP42	80.5 %	17 W	2.24 in	29.5 mm	3.31 "	1.16 in	84 mm	57 mm
