AOD290 Series
Manufacturer: Alpha & Omega Semiconductor Inc.
Beta
⌘K

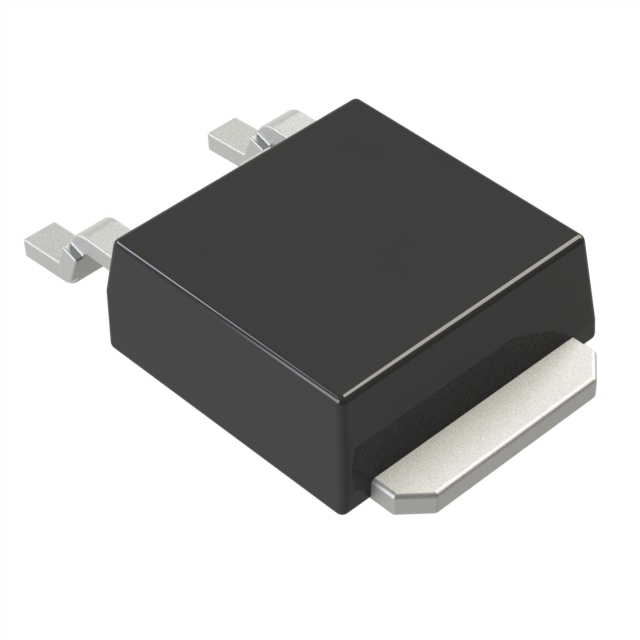

MOSFET N-CH 100V 10.5A/70A TO252
| Part | FET Type | Package / Case | Mounting Type | Gate Charge (Qg) (Max) @ Vgs [Max] | Vgs (Max) | Input Capacitance (Ciss) (Max) @ Vds | Rds On (Max) @ Id, Vgs | Current - Continuous Drain (Id) @ 25°C | Supplier Device Package | Drain to Source Voltage (Vdss) | Technology | Operating Temperature [Max] | Operating Temperature [Min] | Vgs(th) (Max) @ Id | Power Dissipation (Max) | Drive Voltage (Max Rds On, Min Rds On) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Alpha & Omega Semiconductor Inc. | N-Channel | DPAK (2 Leads + Tab) SC-63 TO-252-3 | Surface Mount | 52 nC | 20 V | 2785 pF | 10 mOhm | 10.5 A 70 A | TO-252 (DPAK) | 100 V | MOSFET (Metal Oxide) | 175 °C | -55 °C | 3.4 V | 2.7 W 125 W | 6 V 10 V |
