AEA16 Series
Manufacturer: TE Intercontec
Beta
⌘K

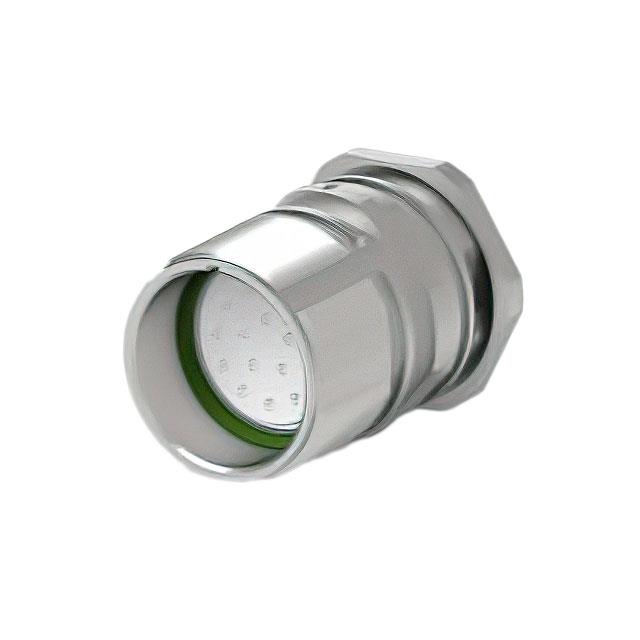

CONN RCPT HSG MALE 16POS PNL MT
| Part | Mounting Type | Note | Mounting Feature | Orientation | Housing Color | Includes | Number of Positions | Contact Shape | Shell Material | Material Flammability Rating | Shell Size - Insert | Type | Shielding | Fastening Type | Ingress Protection | Operating Temperature [Min] | Operating Temperature [Max] | Insert Material | Shell Finish | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Intercontec | Panel Mount | Contacts Not Included | Bulkhead - Rear Side Nut | Keyed | Silver | 1 Connector 1 Nut 1 O-Ring | 16 | Circular | Zinc Die Cast | UL94 V-0 | M23-16 | For Male Pins | Unshielded | Push-Twist | IP66 IP67 | -20 ░C | 130 °C | Polybutylene Terephthalate (PBT) | Nickel | Receptacle Housing |
