CSS4J Series
Manufacturer: Bourns Inc.
Beta
⌘K

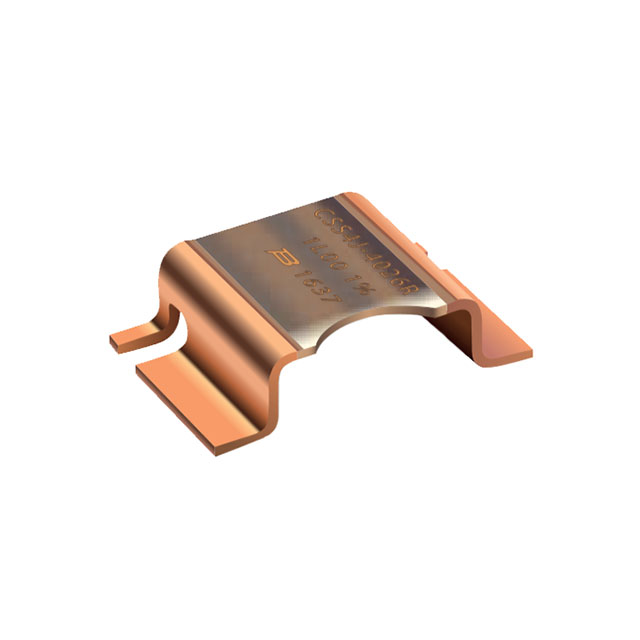

RES SMD 500 UOHM 1% 5W 4026
| Part | Ratings | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Composition | Resistance | Supplier Device Package | Number of Terminations | Height - Seated (Max) [Max] | Height - Seated (Max) | Tolerance | Package / Case | Temperature Coefficient | Operating Temperature [Max] | Operating Temperature [Min] | Features | Power (Watts) | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | AEC-Q200 | 0.26 in | 0.397 " | 6.6 mm | 10.06 mm | Metal Element | 0.5 mOhms | 4026 | 4 | 0.059 " | 1.5 mm | 1 % | Nonstandard | 100 ppm/°C | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 5 W | ||
Bourns Inc. | AEC-Q200 | 0.26 in | 0.397 " | 6.6 mm | 10.06 mm | Metal Element | 0.5 mOhms | 4026 | 4 | 0.059 " | 1.5 mm | 1 % | Nonstandard | 100 ppm/°C | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 5 W | ||
Bourns Inc. | AEC-Q200 | 0.26 in | 0.397 " | 6.6 mm | 10.06 mm | Metal Element | 2 mOhms | 4026 | 4 | 0.055 in | 1 % | Nonstandard | 75 ppm/°C | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 4 W | 1.39 mm | ||
Bourns Inc. | AEC-Q200 | 0.26 in | 0.397 " | 6.6 mm | 10.06 mm | Metal Element | 2 mOhms | 4026 | 4 | 0.055 in | 1 % | Nonstandard | 75 ppm/°C | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 4 W | 1.39 mm | ||
Bourns Inc. | AEC-Q200 | 0.26 in | 0.397 " | 6.6 mm | 10.06 mm | Metal Element | 1 mOhms | 4026 | 4 | 1 % | Nonstandard | 75 ppm/°C | 170 °C | -55 C | Automotive AEC-Q200 Current Sense | 4 W | 0.045 in | 1.15 mm |
