CPFIUG Series
Manufacturer: Cinch Connectivity Solutions AIM-Cambridge
Beta
⌘K

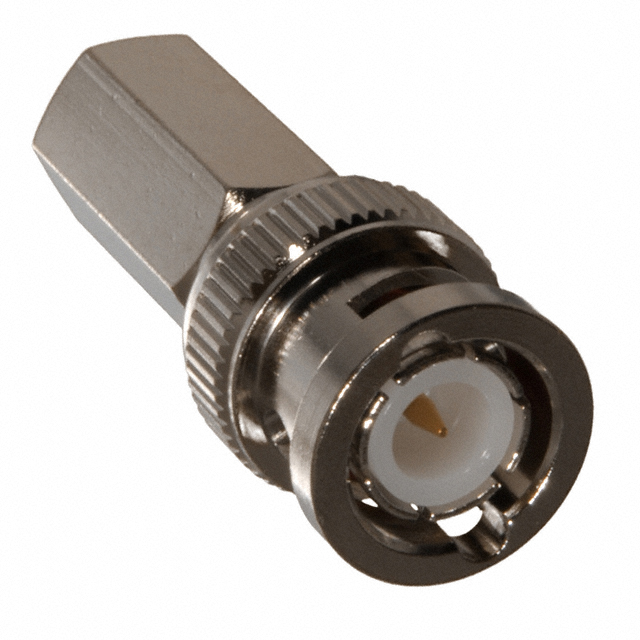

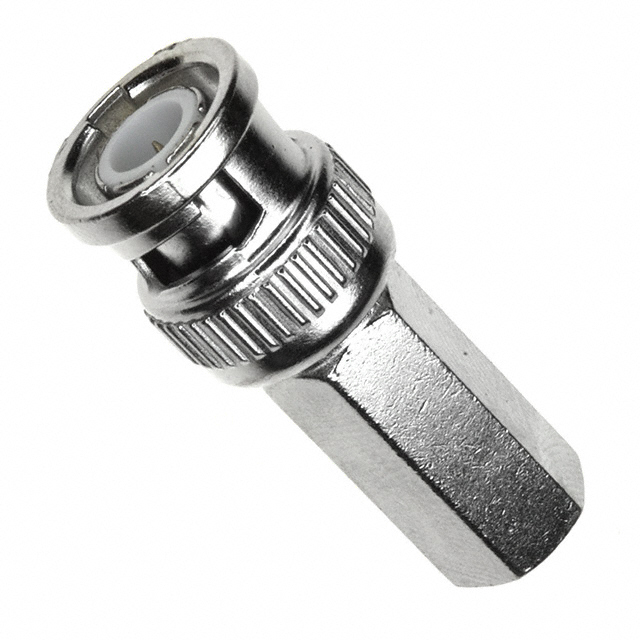

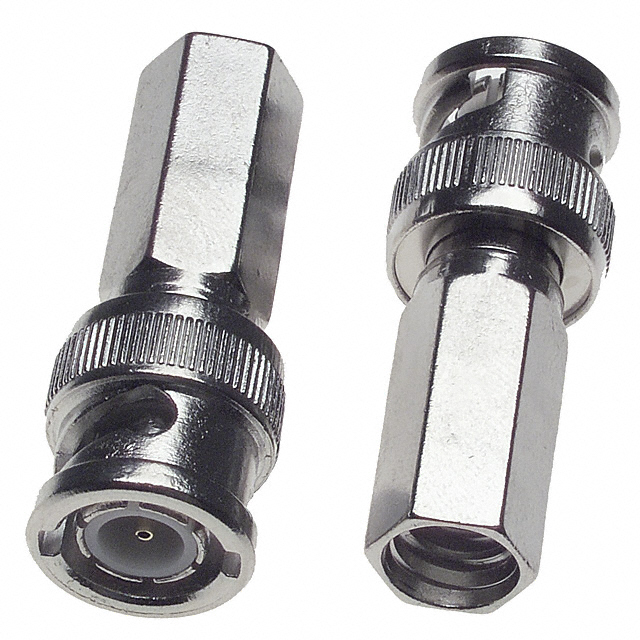

CONN BNC PLUG STR 50 OHM PUSH
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Finish | Voltage Rating | Body Material | Dielectric Material | Center Contact Plating | Mating Cycles | Number of Ports | Impedance | Features | Connector Type | Frequency - Max [Max] | Contact Termination | Housing Color | Center Contact Material | Connector Style | Cable Group | Shield Termination | Mounting Type | Fastening Type | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Cinch Connectivity Solutions AIM-Cambridge | -55 C | 85 °C | Nickel | 500 V | Zinc | Polytetrafluoroethylene (PTFE) | Gold | 500 | 1 | 50 Ohms | Field Installable | Plug Male Pin | 4 GHz | Push On | Silver | Brass | BNC | RG-6 Quad Shield Belden 8218 | Twist On | Free Hanging (In-Line) | Bayonet Lock | |
 Cinch Connectivity Solutions AIM-Cambridge | -55 C | 85 °C | Nickel | 500 V | Zinc | Polytetrafluoroethylene (PTFE) | Gold | 500 | 1 | 50 Ohms | Field Installable | Plug Male Pin | 4 GHz | Push On | Silver | Phosphor Bronze | BNC | RG-6 | Twist On | Free Hanging (In-Line) | Bayonet Lock | |
 Cinch Connectivity Solutions AIM-Cambridge | -55 C | 85 °C | Nickel | 500 V | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | 1 | 50 Ohms | Field Installable | Plug Male Pin | 4 GHz | Push On | Silver | Phosphor Bronze | BNC | RG-59 | Twist On | Free Hanging (In-Line) | Bayonet Lock | 62 |
 Cinch Connectivity Solutions AIM-Cambridge | -55 C | 85 °C | Nickel | 500 V | Brass | Polytetrafluoroethylene (PTFE) | Gold | 500 | 1 | 50 Ohms | Field Installable | Plug Male Pin | 4 GHz | Push On | Silver | Phosphor Bronze | BNC | 62 Plenum RG-59 | Twist On | Free Hanging (In-Line) | Bayonet Lock |
