EAST2012 Series

Manufacturer: Everlight Electronics Co Ltd

Catalog

LED WHITE DIFFUSED 0805 SMD

Part	Current - Test	Lens Color	Voltage - Forward (Vf) (Typ)	Color	Configuration	Height (Max) [z]	Lens Transparency	Millicandela Rating	Lens Size [x]	Lens Size [y]	Size / Dimension [x]	Size / Dimension [y]	Lens Style	Viewing Angle	Supplier Device Package	Mounting Type	Package / Case	Wavelength - Peak	Wavelength - Dominant	Height (Max) [Max] [z]
Everlight Electronics Co Ltd EAST2012WA1	5 mA	Yellow	2.8 V	White	Independent	1.1 mm	Diffused	98.5 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	150 °	0805	Surface Mount	0805

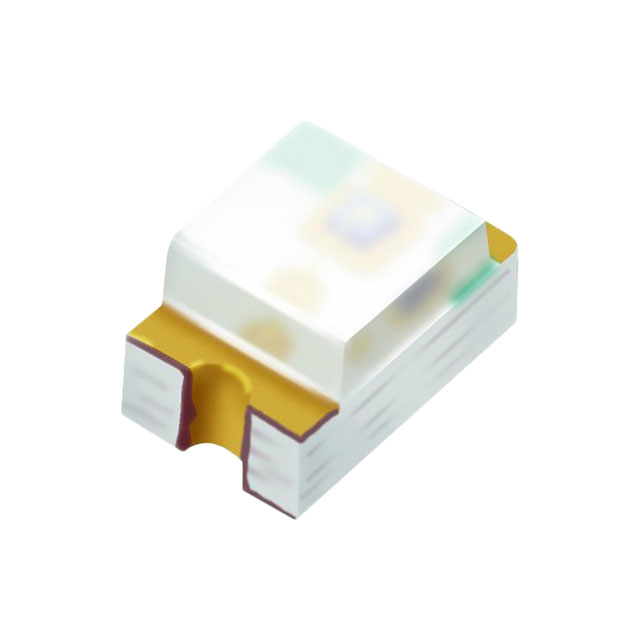

Everlight Electronics Co Ltd EAST2012GA5	20 mA	Colorless	3.4 V	Green	Standard	1 mm	Clear	315 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °	2-SMD	Surface Mount	0805	518 nm	523 nm
Everlight Electronics Co Ltd EAST2012YA2	20 mA	Colorless	2.05 V	Yellow	Standard	1.1 mm	Clear	85 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °	2-SMD	Surface Mount	0805	591 nm	589 nm
Everlight Electronics Co Ltd EAST2012GA7	20 mA	Colorless	2.05 V	Green	Standard	1 mm	Clear	15 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °	2-SMD	Surface Mount	0805	561 nm	563 nm
Everlight Electronics Co Ltd EAST2012BA2	20 mA	Colorless	3.3 V	Blue	Standard	1.1 mm	Clear	79 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °	2-SMD	Surface Mount	0805	468 nm	471 nm
Everlight Electronics Co Ltd EAST2012GA8	20 mA	Colorless	2.05 V	Green	Standard	1 mm	Clear	45 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °	2-SMD	Surface Mount	0805	568 nm	568 nm
Everlight Electronics Co Ltd EAST2012WA3	5 mA	Yellow	3 V	White	Standard	1.1 mm	Diffused	79 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	150 °	2-SMD	Surface Mount	0805
Everlight Electronics Co Ltd EAST2012YA0-AM	5 mA	Colorless	2 V	Yellow	Standard	1.1 mm	Clear	20 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °	2-SMD	Surface Mount	0805	591 nm	590 nm
Everlight Electronics Co Ltd EAST2012GA4	20 mA	Colorless	2.05 V	Yellow-Green	Standard	1 mm	Clear	68 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °	2-SMD	Surface Mount	0805	575 nm	573 nm
Everlight Electronics Co Ltd EAST2012BA5	20 mA	Clear Colorless	3 V	Blue	Standard		Clear	79 mcd	1.4 mm	1.25 mm	2 mm	1.25 mm	Rectangle with Flat Top	140 °		Surface Mount	2-SMD No Lead	468 nm	471 nm	1.3 mm
