SBH51 Series

Manufacturer: Sullins Connector Solutions

Catalog

Catalog

CONN HEADER SMD 64POS 1MM

...

Part	Contact Finish Thickness - Post	Current Rating (Amps)	Number of Positions	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded	Contact Material	Shrouding	Insulation Color	Termination	Mounting Type	Contact Shape	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish Thickness - Mating	Connector Type	Contact Type	Number of Rows [custom]	Insulation Height	Insulation Height	Row Spacing - Mating	Row Spacing - Mating	Insulation Material	Fastening Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Post	Contact Length - Post	Features
Sullins Connector Solutions SBH51-LPPE-D32-SM-BK	Flash	1 A	64	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Surface Mount	Square	125 °C	-40 C	Flash	Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull
Sullins Connector Solutions SBH51-LPSE-D19-ST-BK		1 A	38	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Through Hole	Square	125 °C	-40 C		Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull	10 Áin	0.25 çm	0.25 µm	10 µin	2.5 mm	0.098 in
Sullins Connector Solutions SBH51-LPPE-D27-SM-BK	Flash	1 A	54	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Surface Mount	Square	125 °C	-40 C	Flash	Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull
Sullins Connector Solutions SBH51-LPSE-D46-SM-BK		1 A	92	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Surface Mount	Square	125 °C	-40 C		Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull	10 Áin	0.25 çm	0.25 µm	10 µin
Sullins Connector Solutions SBH51-LPPE-D18-ST-BK	Flash	1 A	36	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Through Hole	Square	125 °C	-40 C	Flash	Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull					2.5 mm	0.098 in

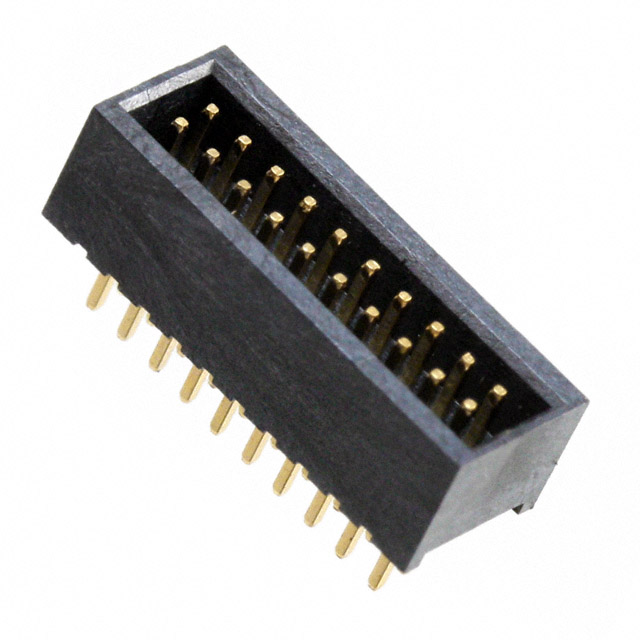

Sullins Connector Solutions SBH51-LPSE-D10-ST-BK		1 A	20	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Through Hole	Square	125 °C	-40 C		Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull	10 Áin	0.25 çm	0.25 µm	10 µin	2.5 mm	0.098 in
Sullins Connector Solutions SBH51-LPPE-D37-SP-BK	Flash	1 A	74	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Surface Mount	Square	125 °C	-40 C	Flash	Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull							Board Guide
Sullins Connector Solutions SBH51-LPSE-D24-SP-BK		1 A	48	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Surface Mount	Square	125 °C	-40 C		Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull	10 Áin	0.25 çm	0.25 µm	10 µin			Board Guide
Sullins Connector Solutions SBH51-LPSE-D35-SM-BK		1 A	70	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Surface Mount	Square	125 °C	-40 C		Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull	10 Áin	0.25 çm	0.25 µm	10 µin
Sullins Connector Solutions SBH51-LPPE-D11-ST-BK	Flash	1 A	22	1 mm	0.039 in	Gold	UL94 V-0	Gold	All	Phosphor Bronze	Shrouded - 4 Wall	Black	Solder	Through Hole	Square	125 °C	-40 C	Flash	Header	Male Pin	2	0.134 in	3.4 mm	0.039 in	1 mm	Liquid Crystal Polymer (LCP)	Push-Pull					2.5 mm	0.098 in
