503304 Series

Board to Board & Mezzanine Connectors .4MM SLIMSTAK REC 02X30P

Manufacturer: Molex

Catalog

Board to Board & Mezzanine Connectors .4MM SLIMSTAK REC 02X30P

Catalog

Board to Board & Mezzanine Connectors .4MM SLIMSTAK REC 02X30P

Part	Number of Positions	Mounting Type	Height Above Board	Height Above Board	Pitch	Pitch	Connector Type	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Rows [custom]	Features	Mated Stacking Heights
Molex 5033042440	24	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	2	Solder Retention	0.7 mm
Molex 5033041642	16	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	2	Pick and Place Solder Retention	0.7 mm

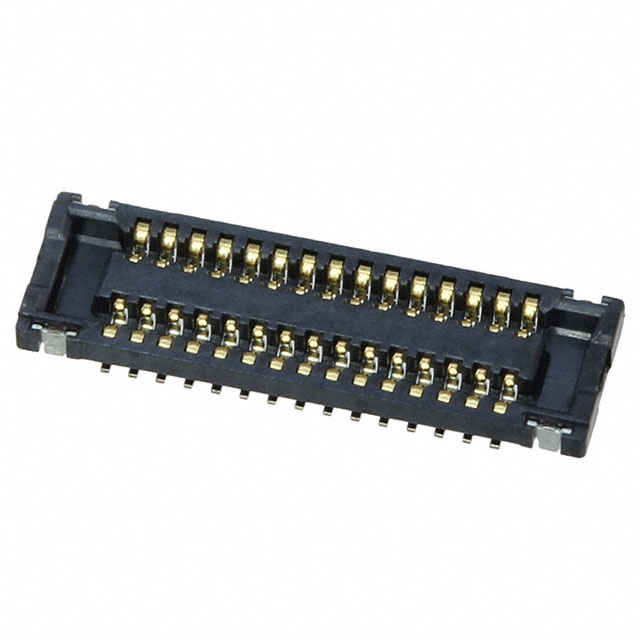

Molex 5033043010	30	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold			2	Solder Retention	0.7 mm
Molex 5033041842	18	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	2	Pick and Place Solder Retention	0.7 mm
Molex 5033044210	42	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold			2	Solder Retention	0.7 mm
Molex 5033046010	60	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold			2	Solder Retention	0.7 mm

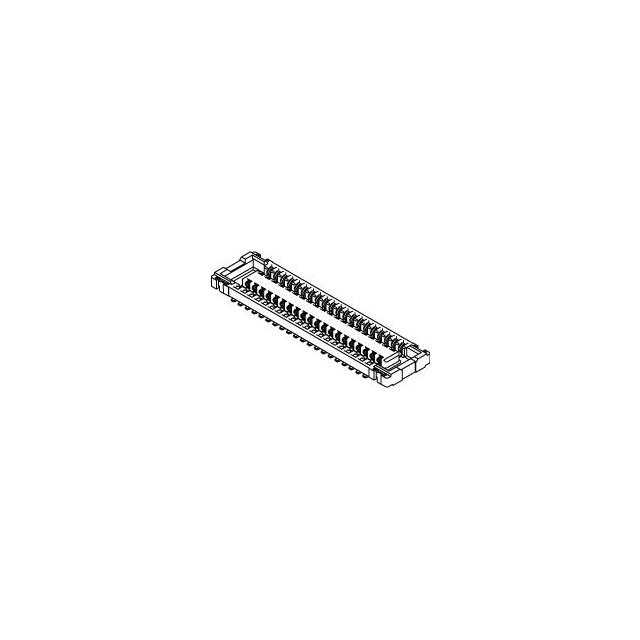

Molex 5033041210	12	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold			2	Solder Retention	0.7 mm
Molex 5033045042	50	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	2	Pick and Place Solder Retention	0.7 mm
Molex 5033041242	12	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold	0.1 Ám	4 Áin	2	Pick and Place Solder Retention	0.7 mm

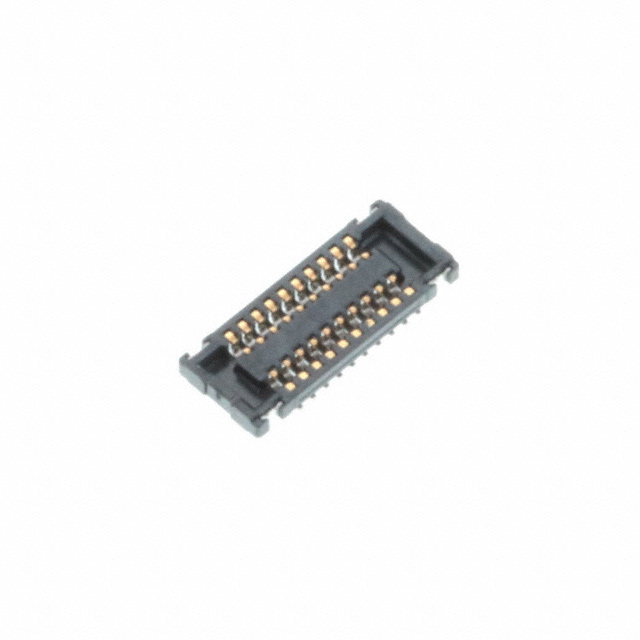

Molex 5033042010	20	Surface Mount	0.027 in	0.68 mm	0.4 mm	0.016 in	Receptacle Center Strip Contacts	Gold			2	Solder Retention	0.7 mm
