1450/16 Series

Catalog

CABLE 2COND 16AWG BLK SHLD 1000'

Part	Shield Coverage	Shield Material	Cable Type	Conductor Strand [custom]	Conductor Strand [custom]	Length	Length	Voltage	Conductor Insulation	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket Color	Jacket (Insulation) Material	Number of Conductors	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Shield Type	Usage	Wire Gauge	Conductor Material	Length [x]	Length [x]
ALPHA WIRE 1450/16 BK001	85 %	Copper Tinned	Multi-Conductor	65	34 AWG	304.8 m	1000 ft	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	8.31 mm	0.327 "	-20 ░C	60 °C	Black	Polychloroprene	2	0.036 in	0.914 mm	Braid	Communication Control	16 AWG	Copper Tinned
ALPHA WIRE 1450/16 BK005	85 %	Copper Tinned	Multi-Conductor	65	34 AWG			600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	8.31 mm	0.327 "	-20 ░C	60 °C	Black	Polychloroprene	2	0.036 in	0.914 mm	Braid	Communication Control	16 AWG	Copper Tinned	100 ft	30.5 m

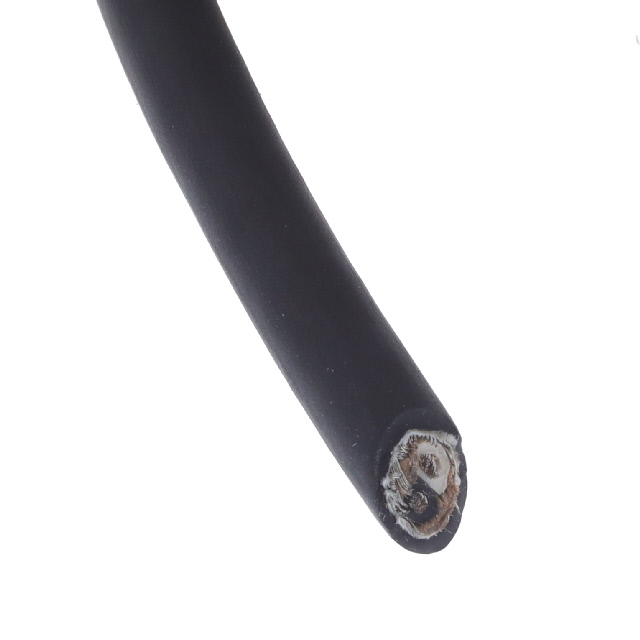

ALPHA WIRE 1450/16 BK002	85 %	Copper Tinned	Multi-Conductor	65	34 AWG	152.4 m	500 ft	600 V	Ethylene Propylene Terpolymer Rubber (EPDM)	8.31 mm	0.327 "	-20 ░C	60 °C	Black	Polychloroprene	2	0.036 in	0.914 mm	Braid	Communication Control	16 AWG	Copper Tinned
