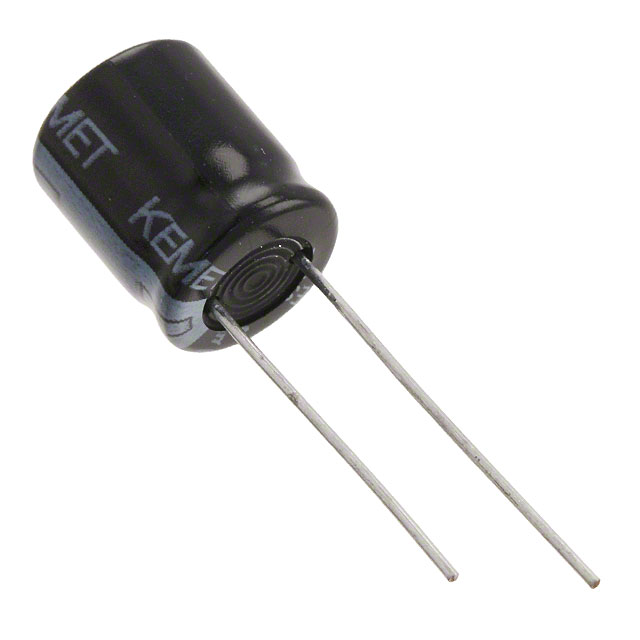

ESY337M Series

Manufacturer: KEMET

Catalog

CAP ALUMINUM LYTIC 330UF 25V 20% (8 X 16MM) RADIAL 3.5MM 0.056 OHM 1A 3000H 105°C BULK

Part	Capacitance	Voltage - Rated	Lifetime @ Temp.	ESR (Equivalent Series Resistance)	Ripple Current @ Low Frequency	Applications	Mounting Type	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Ripple Current @ High Frequency	Impedance	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [diameter]	Size / Dimension [diameter]	Tolerance	Polarization	Package / Case	Lead Spacing	Lead Spacing	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]

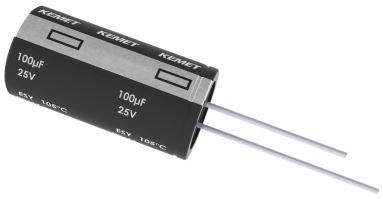

KEMET ESY337M025AG8AA	330 µF	25 VDC	3000 Hrs	56 mOhm	700 mA	General Purpose	Through Hole	0.709 in	18 mm	1 A	56 mOhms	-40 C	105 ░C	0.315 in	8 mm	20 %	Polar	Can Radial	0.138 in	3.5 mm
KEMET ESY337M010AG3AA	330 µF	10 V	3000 Hrs	100 mOhm	448 mA	General Purpose	Through Hole			640 mA	100 mOhms	-40 C	105 ░C	0.315 in	8 mm	20 %	Polar	Can Radial	0.138 in	3.5 mm	0.492 in	12.5 mm

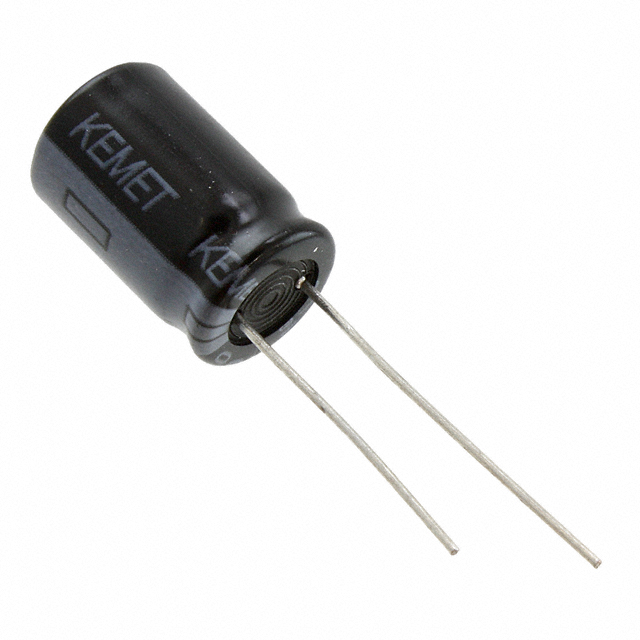

KEMET ESY337M035AH2AA	330 µF	35 V	4000 Hrs	38 mOhm	1.001 A	General Purpose	Through Hole	0.669 "		1.43 A	38 mOhms	-40 C	105 ░C	0.394 in	10 mm	20 %	Polar	Can Radial	0.197 "	5 mm	17 mm
