PREC002 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 2POS 2.54MM

Part	Connector Type	Contact Material	Pitch - Mating	Pitch - Mating	Contact Length - Mating	Contact Length - Mating	Shrouding	Contact Type	Termination	Material Flammability Rating	Contact Shape	Contact Finish - Post	Style	Mounting Type	Contact Length - Post	Contact Length - Post	Fastening Type	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Color	Insulation Material	Current Rating (Amps)	Number of Positions	Overall Contact Length [x]	Overall Contact Length [x]	Number of Rows	Insulation Height	Insulation Height	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Number of Rows [custom]	Row Spacing - Mating [x]	Row Spacing - Mating [x]

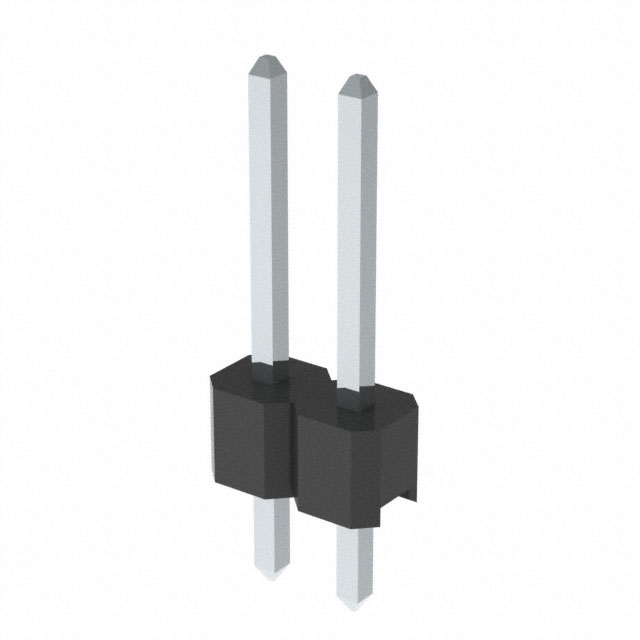

Sullins Connector Solutions PREC002SFAN-RC	Header Breakaway	Brass	0.1 "	2.54 mm	8.08 mm	0.318 in	Unshrouded	Male Pin	Solder	UL94 V-0	Square	Tin	Board to Board Cable	Through Hole	3.05 mm	0.12 in	Push-Pull	-40 C	105 ░C	Black	Polybutylene Terephthalate (PBT)	3 A	2	13.63 mm	0.537 in	1	0.098 "	2.5 mm	All

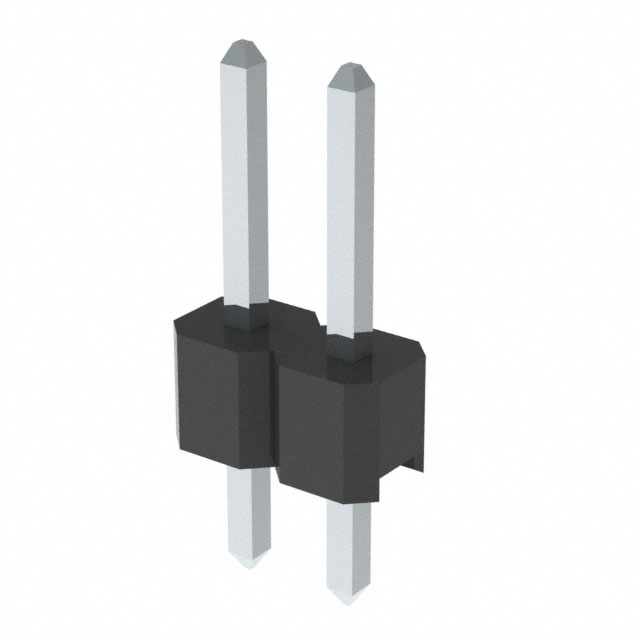

Sullins Connector Solutions PREC002SAAN-RC	Header Breakaway	Brass	0.1 "	2.54 mm	5.84 mm	0.23 in	Unshrouded	Male Pin	Solder	UL94 V-0	Square	Tin	Board to Board Cable	Through Hole	3.05 mm	0.12 in	Push-Pull	-40 C	105 ░C	Black	Polybutylene Terephthalate (PBT)	3 A	2			1	0.098 "	2.5 mm	All	0.448 in	11.39 mm
Sullins Connector Solutions PREC002DAAN-RC	Header Breakaway	Brass	0.1 "	2.54 mm	5.84 mm	0.23 in	Unshrouded	Male Pin	Solder	UL94 V-0	Square	Tin	Board to Board Cable	Through Hole	3.05 mm	0.12 in	Push-Pull	-40 C	105 ░C	Black	Polybutylene Terephthalate (PBT)	3 A	4				0.098 "	2.5 mm	All	0.448 in	11.39 mm	2	0.1 in	2.54 mm

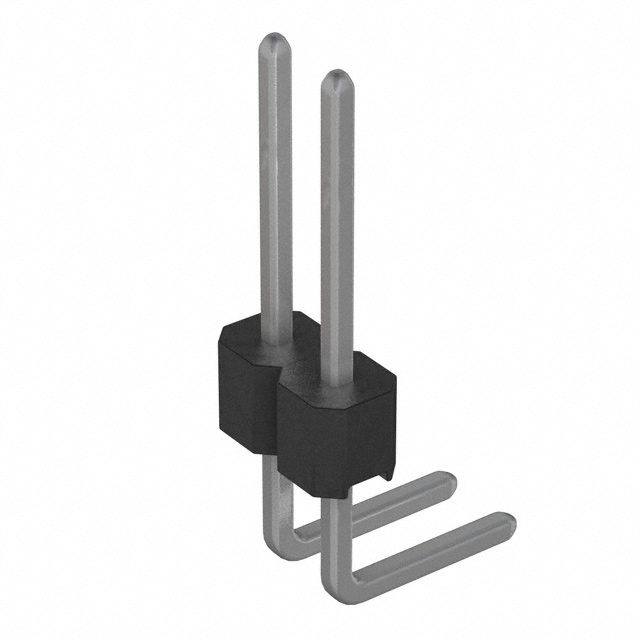

Sullins Connector Solutions PREC002SBAN-M71RC	Header Breakaway	Brass	0.1 "	2.54 mm	5.84 mm	0.23 in	Unshrouded	Male Pin	Solder	UL94 V-0	Square	Tin	Board to Board Cable	Right Angle Through Hole	3.05 mm	0.12 in	Push-Pull	-40 C	105 ░C	Black	Polybutylene Terephthalate (PBT)	3 A	2			1	0.098 "	2.5 mm	All
