PEM2-S5 Series
Manufacturer: CUI Inc.
Beta
⌘K
DC DC CONVERTER +/-15V 2W
| Part | Voltage - Input (Min) [Min] | Voltage - Output 2 | Package / Case | Voltage - Output 1 | Power (Watts) | Type | Voltage - Isolation | Mounting Type | Efficiency | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Outputs | Features | Standard Number | Voltage - Input (Max) [Max] | Approval Agency | Applications | Current - Output (Max) [Max] | Current - Output (Max) [Max] | Current - Output (Max) | Current - Output (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

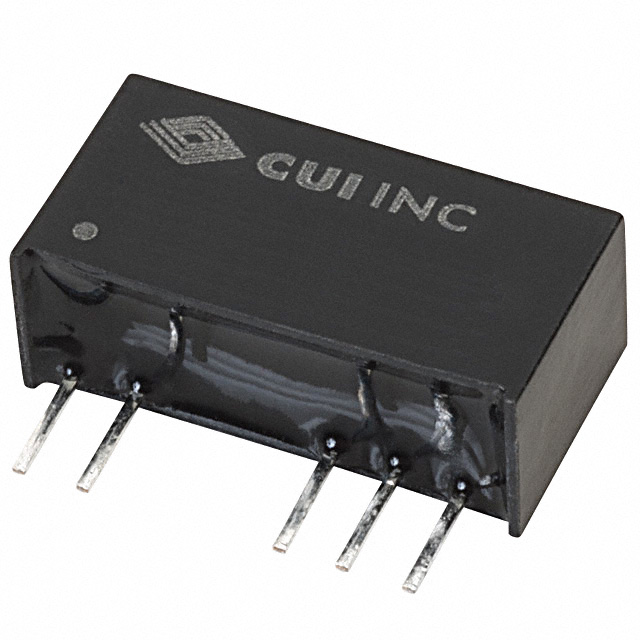

 CUI Inc. | 4.5 V | -15 V | 7-SIP Module 5 Leads | 15 V | 2 W | Isolated Module | 3000 V | Through Hole | 84 % | 0.39 " | 0.28 in | 19.6 mm | 7 mm | 0.77 in | 10 mm | -40 C | 105 ░C | 2 | SCP | 55024 55032 Class A 60950-1 | 5.5 V | CB Scheme EN IEC UL | ITE (Commercial) | 66.6 mA | 66.6 mA | ||

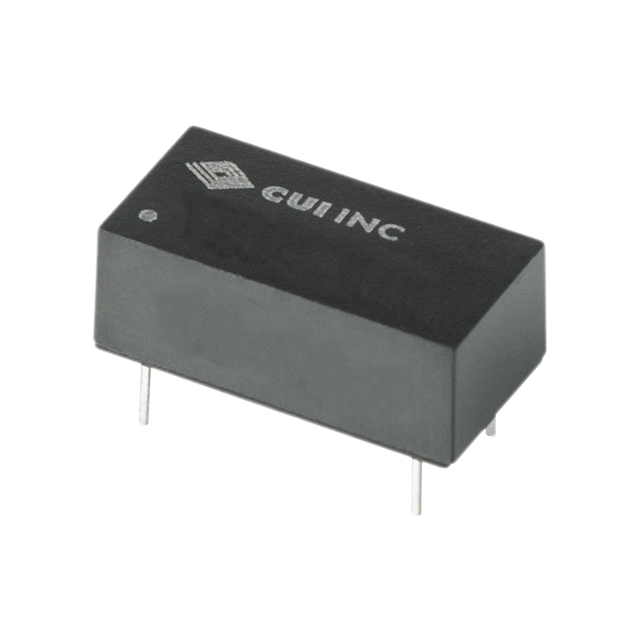

 CUI Inc. | 4.5 V | 14-DIP Module 6 Leads | 15 V | 2 W | Isolated Module | 3000 V | Through Hole | 84 % | 0.32 " | 0.39 in | 20.1 mm | 9.9 mm | 0.79 " | 8.2 mm | -40 C | 105 ░C | 1 | SCP | 55024 55032 Class A 60950-1 | 5.5 V | CB Scheme EN IEC UL | ITE (Commercial) | 133 mA | ||||

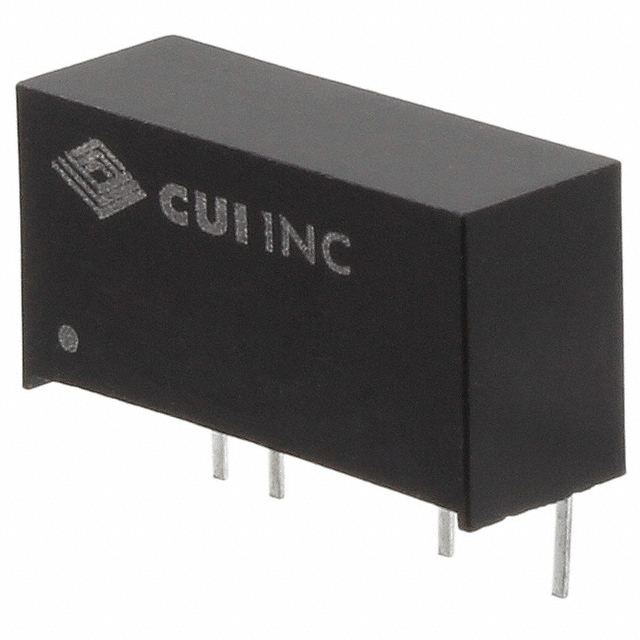

 CUI Inc. | 4.5 V | 7-SIP Module 4 Leads | 12 V | 2 W | Isolated Module | 3000 V | Through Hole | 84 % | 0.39 " | 0.28 in | 19.6 mm | 7 mm | 0.77 in | 10 mm | -40 C | 105 ░C | 1 | SCP | 55024 55032 Class A 60950-1 | 5.5 V | CB Scheme EN IEC UL | ITE (Commercial) | 166.6 mA | ||||
CUI Inc. | 4.5 V | -5 V | 14-DIP Module 6 Leads | 5 V | 2 W | Isolated Module | 3000 V | Through Hole | 80 % | 0.32 " | 0.39 in | 20.1 mm | 9.9 mm | 0.79 " | 8.2 mm | -40 C | 105 ░C | 2 | SCP | 55024 55032 Class A 60950-1 | 5.5 V | CB Scheme EN IEC UL | ITE (Commercial) | ||||
CUI Inc. | 4.5 V | -12 V | 14-DIP Module 6 Leads | 12 V | 2 W | Isolated Module | 3000 V | Through Hole | 84 % | 0.32 " | 0.39 in | 20.1 mm | 9.9 mm | 0.79 " | 8.2 mm | -40 C | 105 ░C | 2 | SCP | 55024 55032 Class A 60950-1 | 5.5 V | CB Scheme EN IEC UL | ITE (Commercial) | 83 mA | 83 mA | ||
CUI Inc. | 4.5 V | -5 V | 7-SIP Module 5 Leads | 5 V | 2 W | Isolated Module | 3000 V | Through Hole | 84 % | 0.39 " | 0.28 in | 19.6 mm | 7 mm | 0.77 in | 10 mm | -40 C | 105 ░C | 2 | SCP | 55024 55032 Class A 60950-1 | 5.5 V | CB Scheme EN IEC UL | ITE (Commercial) | ||||
CUI Inc. | 4.5 V | -24 V | 7-SIP Module 5 Leads | 24 V | 2 W | Isolated Module | 3000 V | Through Hole | 84 % | 0.39 " | 0.28 in | 19.6 mm | 7 mm | 0.77 in | 10 mm | -40 C | 105 ░C | 2 | SCP | 55024 55032 Class A 60950-1 | 5.5 V | CB Scheme EN IEC UL | ITE (Commercial) | 41.6 mA |
