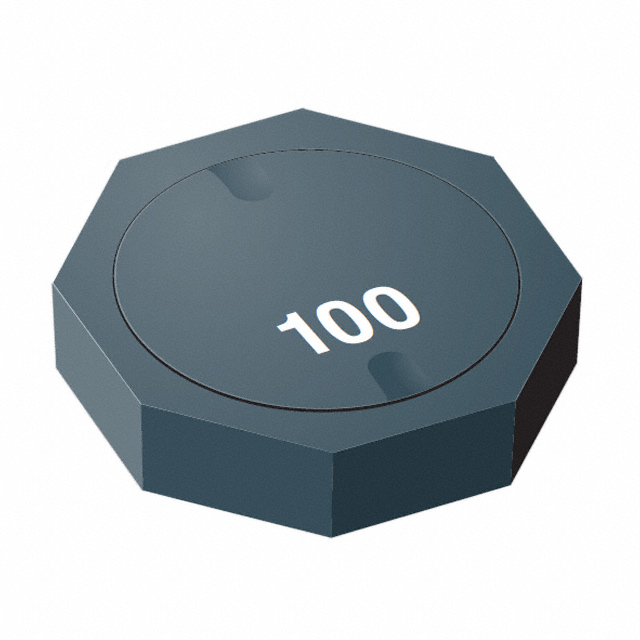

SRU1028A Series

Catalog

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU1028A SERIES, 82 H, 30%, SHIELDED, 0.42 OHM, 900 MA ROHS COMPLIANT: YES

Part	Tolerance	Package / Case	DC Resistance (DCR)	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Mounting Type	Ratings	Type	Material - Core	Inductance	Operating Temperature [Max]	Operating Temperature [Min]	Q @ Freq	Shielding	Frequency - Self Resonant	Inductance Frequency - Test	Current Rating (Amps)	Current - Saturation (Isat)	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq [custom]
Bourns Inc. SRU1028A-820Y	30 %	Nonstandard	420 mOhm	0.394 in	0.394 in	10 mm	10 mm	0.122 in	3.1 mm	Surface Mount	AEC-Q200	Drum Core Wirewound	Ferrite	82 µH	125 °C	-40 C	2.52 MHz 20	Shielded	8 MHz	100 kHz	900 mA	850 mA
Bourns Inc. SRU1028A-8R2Y	30 %	Nonstandard		0.394 in	0.394 in	10 mm	10 mm	0.122 in	3.1 mm	Surface Mount	AEC-Q200	Drum Core Wirewound	Ferrite	8.2 µH	125 °C	-40 C	7.96 MHz 12	Shielded	28 MHz	100 kHz	3.3 A	2.7 A	37 mOhm
Bourns Inc. SRU1028A-6R8Y	30 %	Nonstandard	33 mOhm	0.394 in	0.394 in	10 mm	10 mm	0.122 in	3.1 mm	Surface Mount	AEC-Q200	Drum Core Wirewound	Ferrite	6.8 µH	125 °C	-40 C	7.96 MHz 12	Shielded	30 MHz	100 kHz	3.5 A	3 A
Bourns Inc. SRU1028A-1R0Y	30 %	Nonstandard	6.5 mOhm	0.394 in	0.394 in	10 mm	10 mm	0.122 in	3.1 mm	Surface Mount	AEC-Q200	Drum Core Wirewound	Ferrite	1 µH	125 °C	-40 C		Shielded	100 MHz	100 kHz	7 A	8 A		14	7.96 MHz
Bourns Inc. SRU1028A-470Y	30 %	Nonstandard		0.394 in	0.394 in	10 mm	10 mm	0.122 in	3.1 mm	Surface Mount	AEC-Q200	Drum Core Wirewound	Ferrite	47 µH	125 °C	-40 C	2.52 MHz 20	Shielded	11 MHz	100 kHz	1.3 A	1.1 A	230 mOhm
Bourns Inc. SRU1028A-150Y	30 %	Nonstandard		0.394 in	0.394 in	10 mm	10 mm	0.122 in	3.1 mm	Surface Mount	AEC-Q200	Drum Core Wirewound	Ferrite	15 µH	125 °C	-40 C	2.52 MHz 26	Shielded	22 MHz	100 kHz	2 A	2 A	90 mOhm
