1757829 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

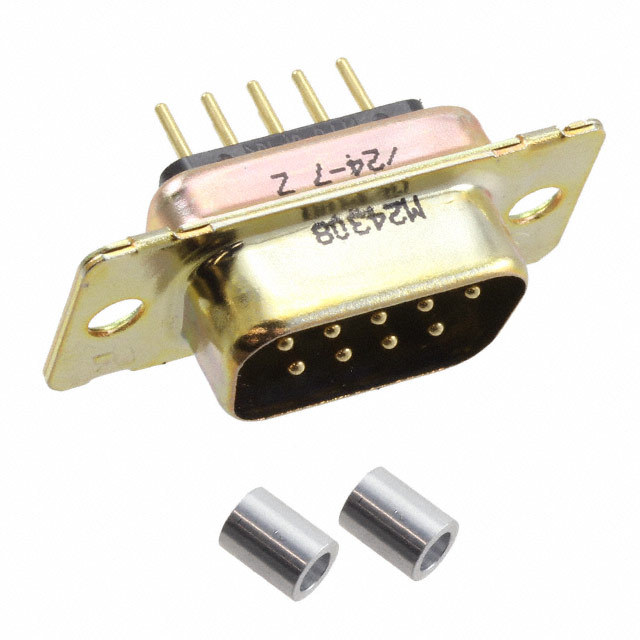

CONN D-SUB PLUG 9POS VERT SOLDER
| Part | Contact Finish Thickness | Contact Finish Thickness | Mounting Type | Number of Positions | Contact Material | Connector Style | Number of Rows | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Contact Type | Flange Feature | Color | Connector Type | Contact Finish | Shell Material, Finish | Current Rating (Amps) | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | 10 Áin | 0.25 Ám | Through Hole | 9 | Brass | D-Sub | 2 | Solder | -55 °C | 125 °C | DE E | 1 | Signal | Housing/Shell (Unthreaded) | Black | Male Pins Plug | Gold | Steel Yellow Chromate Plated Zinc | 5 A | |
 TE Connectivity Aerospace, Defense and Marine | 10 Áin | 0.25 Ám | Through Hole | 15 | Brass | D-Sub | 2 | Solder | -55 °C | 125 °C | Signal | Housing/Shell (Unthreaded) | Black | Male Pins Plug | Gold | Steel Yellow Chromate Plated Zinc | 5 A | 2 | ||
 TE Connectivity Aerospace, Defense and Marine | 10 Áin | 0.25 Ám | Through Hole | Brass | D-Sub | 2 | Solder | -55 °C | 125 °C | B DB | 3 | Signal | Housing/Shell (Unthreaded) | Black | Male Pins Plug | Gold | Steel Yellow Chromate Plated Zinc | 5 A |
