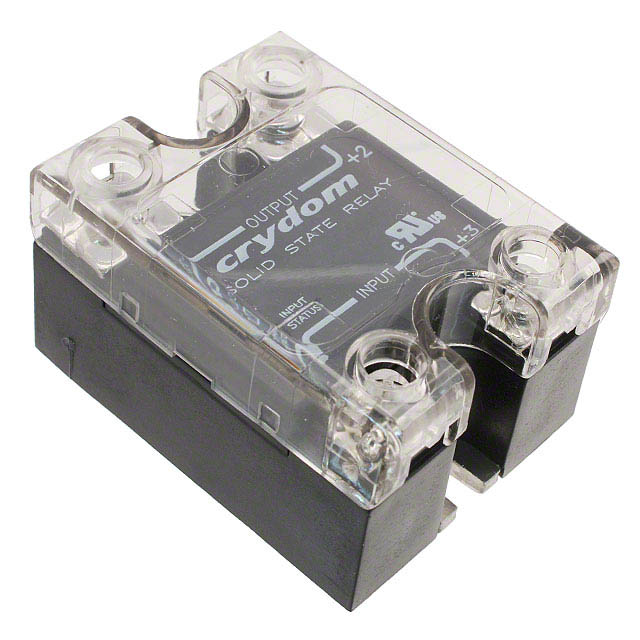

DC100D Series

Catalog

SSR RELAY SPST-NO 80A 1-72V

Part	Output Type	Voltage - Input [Max]	Voltage - Input [Min]	Voltage - Load [Max]	Voltage - Load [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	On-State Resistance (Max) [Max]	Mounting Type	Package / Case	Termination Style	Load Current
Sensata-Crydom DC100D80	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	5 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	80 A
Sensata-Crydom DC100D20C	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	12 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	20 A

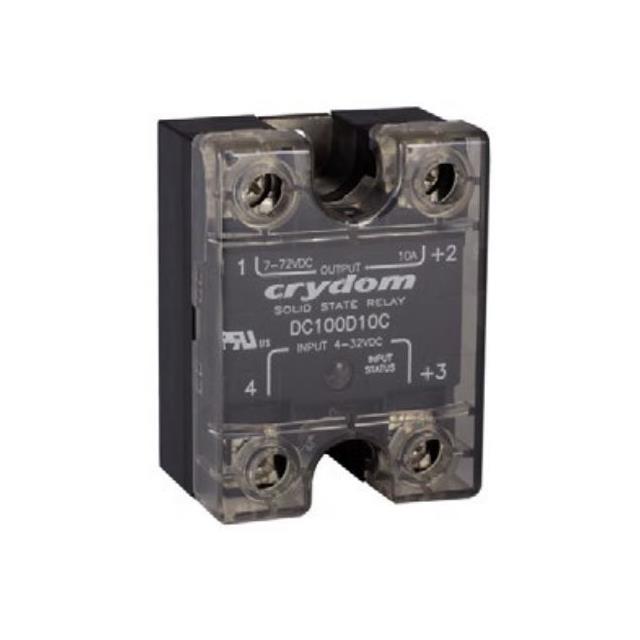

Sensata-Crydom DC100D100CH	DC	32 VDC	4 V	100 V	1 V	-40 C	100 °C	CE cURus	4 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	100 A
Sensata-Crydom DC100D80C	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	5 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	80 A
Sensata-Crydom DC100D100C	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	4 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	100 A
Sensata-Crydom DC100D60	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	6 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	60 A
Sensata-Crydom DC100D80CH	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	5 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	80 A

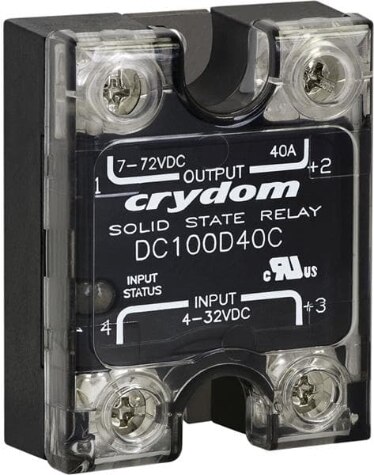

Sensata-Crydom DC100D20	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	12 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	20 A
Sensata-Crydom DC100D40	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE cURus	7 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	40 A
Sensata-Crydom DC100D40C	DC	32 VDC	4 V	72 V	1 V	-40 C	100 °C	CE CE cURus cURus UKCA	7 mOhms	Chassis Mount	Hockey Puck	Screw Terminal	40 A
