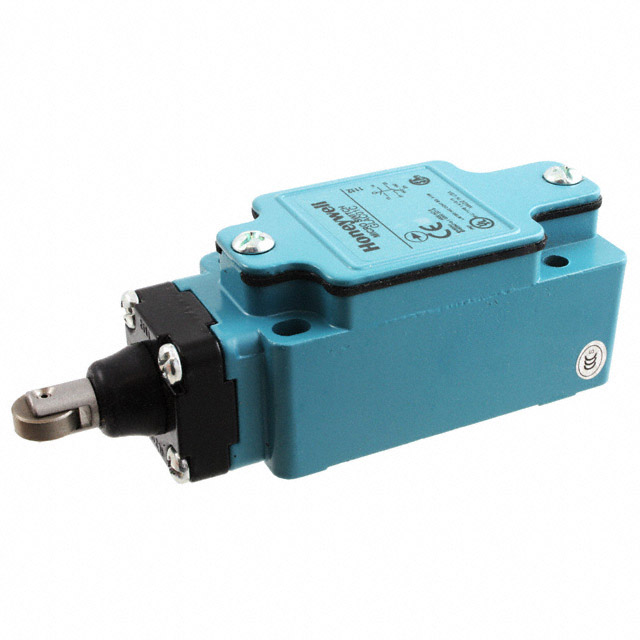

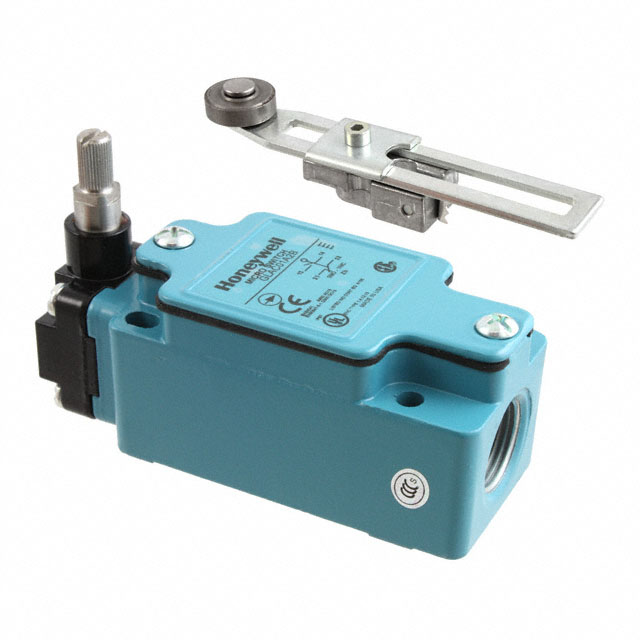

GLAC01 Series
Manufacturer: Honeywell Sensing and Productivity Solutions
Beta
⌘K
SWITCH SNAP ACTION SPDT 6A 120V
| Part | Voltage Rating - DC | Voltage Rating - AC | Actuator Type | Switch Function | Features | Current Rating (Amps) | Mounting Type | Operating Force | Ingress Protection | Pretravel | Termination Style | Circuit | Overtravel | Differential Travel | Operating Position | Operating Temperature [Min] | Operating Temperature [Max] | Mechanical Life | Pretravel | Operating Position [x] | Operating Position [x] | Overtravel |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Honeywell Sensing and Productivity Solutions | 125 VDC | 120 V | Side Rotary Adjustable Roller | On-Mom | Nylon Roller | 6 A 550 mA | Chassis Mount | 33 gfm | IP67 - Dust Tight Waterproof | 26 ° | Screw Terminal | SPDT | 59 ° | 12 ° | 26 ° | -25 °C | 85 °C | 15000000 Cycles | ||||
 Honeywell Sensing and Productivity Solutions | 125 VDC | 120 V | Side Rotary Adjustable Roller | On-Mom | Steel Roller | 6 A 550 mA | Chassis Mount | 33 gfm | IP67 - Dust Tight Waterproof | 26 ° | Screw Terminal | SPDT | 59 ° | 12 ° | 26 ° | -25 °C | 85 °C | 15000000 Cycles | ||||
 Honeywell Sensing and Productivity Solutions | 125 VDC | 120 V | Roller Plunger | On-Mom | 6 A 550 mA | Chassis Mount | 1632 gf | IP67 - Dust Tight Waterproof | 0.1 in | Screw Terminal | SPDT | 0.18 in | -25 °C | 85 °C | 15000000 Cycles | 2.5 mm | 48 mm | 1.89 in | 4.6 mm |
