SMLZ13 Series

Catalog

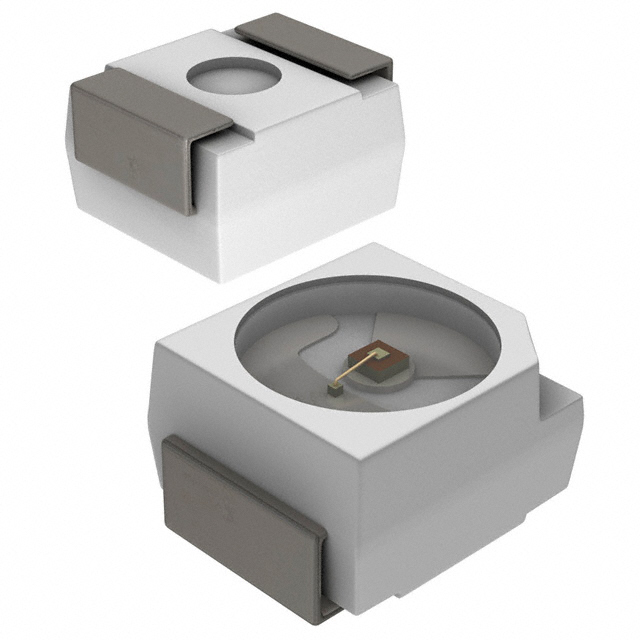

LED BLUE CLEAR 2PLCC SMD

Part	Configuration	Current - Test	Lens Transparency	Color	Height (Max) [Max] [z]	Lens Color	Millicandela Rating	Size / Dimension [y]	Size / Dimension [x]	Wavelength - Dominant	Supplier Device Package	Lens Size [diameter]	Voltage - Forward (Vf) (Typ)	Mounting Type	Lens Style	Package / Case
Rohm Semiconductor SMLZ13BDTT86A	Standard	20 mA	Clear	Blue	2.05 mm	Colorless	280 mcd	2.8 mm	3.2 mm	470 nm	2-PLCC	2.4 mm Dia	3.2 V	Surface Mount	Round with Flat Top	2-PLCC
Rohm Semiconductor SMLZ13WBDAW1	Standard	20 mA	Diffused	White	2.05 mm	White	700 mcd	2.8 mm	3.2 mm		2-PLCC	2.4 mm Dia	3.2 V	Surface Mount	Round with Flat Top	2-PLCC
Rohm Semiconductor SMLZ13WBDCW1	Standard	20 mA	Diffused	White	2.05 mm	White	1400 mcd	2.8 mm	3.2 mm		2-PLCC	2.4 mm Dia	3.2 V	Surface Mount	Round with Flat Top	2-PLCC
Rohm Semiconductor SMLZ13WBDCW1A	Standard	20 mA	Diffused	White	2.05 mm	White	1400 mcd	2.8 mm	3.2 mm		2-PLCC	2.4 mm Dia	3.2 V	Surface Mount	Round with Flat Top	2-PLCC
