34122 Series

Catalog

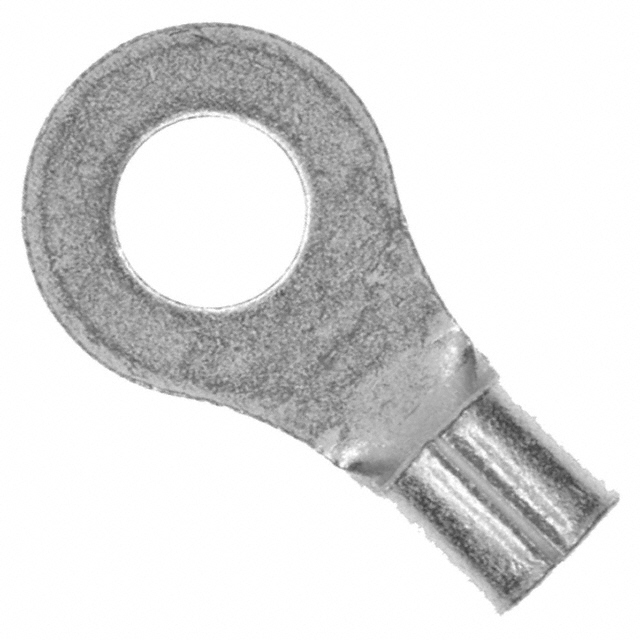

TERMINAL,SOLIS R 16-14 8

Part	Termination	Thickness	Thickness	Contact Material	Mounting Type	Insulation	Contact Finish	Length - Overall [x]	Length - Overall [x]	Stud/Tab Size	Features	Terminal Type	Width - Outer Edges [x]	Width - Outer Edges [x]
TE Connectivity Raychem Cable Protection 2-34122-1	Crimp	0.031 in	0.79 mm	Copper	Free Hanging (In-Line)	Non-Insulated	Tin	0.636 in	16.15 mm	8 Stud	Brazed Seam Serrated Termination	Circular	0.343 in	8.71 mm

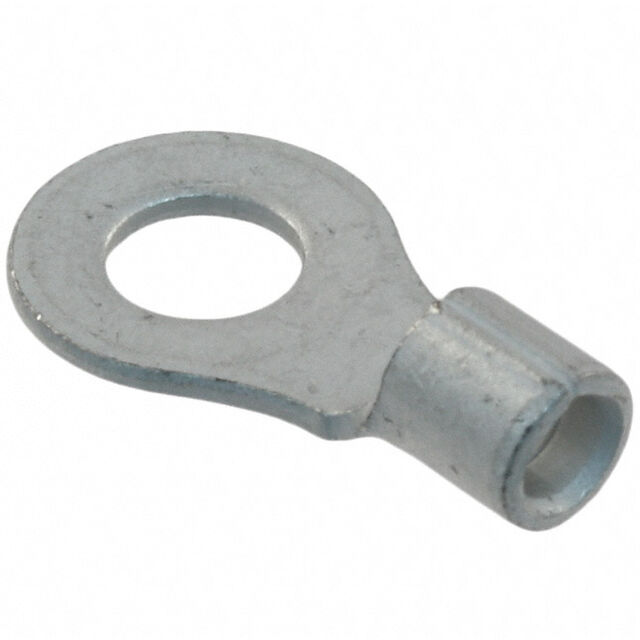

TE Connectivity Raychem Cable Protection 8-34122-1	Crimp	0.031 in	0.79 mm	Copper	Free Hanging (In-Line)	Non-Insulated	Tin	0.636 in	16.15 mm	8 Stud	Brazed Seam Serrated Termination	Circular	0.343 in	8.71 mm
