94HAB10 Series

Catalog

SWITCH ROTARY DIP BCD 0.1A 50V

Part	Mechanical Life	Length	Length	Body Material	Voltage Rating	Current Rating (Amps)	Pitch	Pitch	Washable	Features	Mounting Type	Actuator Type	Circuit	Actuator Level	Height Above Board [z]	Height Above Board [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish	Contact Material	Termination Style	Number of Positions

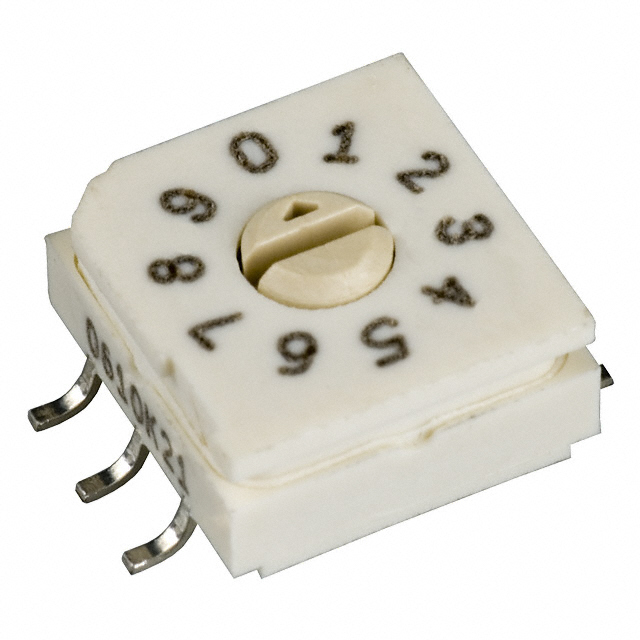

Grayhill Inc. 94HAB10WT	10000 Steps	0.39 "	9.91 mm	Plastic	50 V	100 mA	2.54 mm	0.1 "		Sealed	Surface Mount	Rotary for Tool	BCD	Flush Recessed	5.72 mm	0.225 in	85 °C	-40 C	Gold	Copper Alloy	Gull Wing	10
Grayhill Inc. 94HAB10JT	10000 Steps	0.39 "	9.91 mm	Plastic	50 V	100 mA	2.54 mm	0.1 "		Sealed	Surface Mount	Rotary for Tool	BCD	Flush Recessed	6.35 mm	0.25 in	85 °C	-40 C	Gold	Copper Alloy	J Lead	10
