2350397 Series

Catalog

BARRIER STRIP TERMINAL BLOCK, 16A, 3.31MM2, 1 ROW(S)

Part	Color	Type	Material Flammability Rating	Number of Positions	Features	Insulation Height	Insulation Height	Wire Strip Length [Min]	Wire Strip Length [Max]	Contact Mating Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Number of Levels	Contact Material	Pitch [x]	Pitch [x]	Positions Per Level	Mounting Type	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Voltage - UL	Operating Temperature [Min]	Operating Temperature [Max]	Current - UL	Termination Style

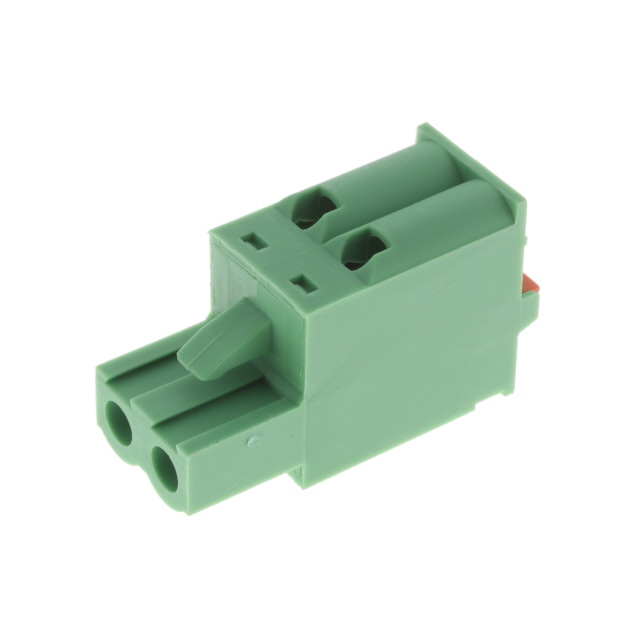

TE Connectivity Raychem Cable Protection 2350397-2	Green	Plug Female Sockets	UL94 V-0	2	Push Button Actuated Retention Latches	0.591 in	15 mm	12 mm	13 mm	Tin	12 AWG	26 AWG	1	Copper Alloy	5 mm	0.197 in	2	Free Hanging (In-Line)	3.31 mm²	0.13 mm²	300 V	-40 °C	105 ░C	16 A	Push-In Spring Screwless - Leg Spring
TE Connectivity Raychem Cable Protection 1-2350397-4	Green	Plug Female Sockets	UL94 V-0	14	Push Button Actuated Retention Latches	0.591 in	15 mm	12 mm	13 mm	Tin	12 AWG	26 AWG	1	Copper Alloy	5 mm	0.197 in	14	Free Hanging (In-Line)	3.31 mm²	0.13 mm²	300 V	-40 °C	105 ░C	16 A	Push-In Spring Screwless - Leg Spring
