DAP15S065 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

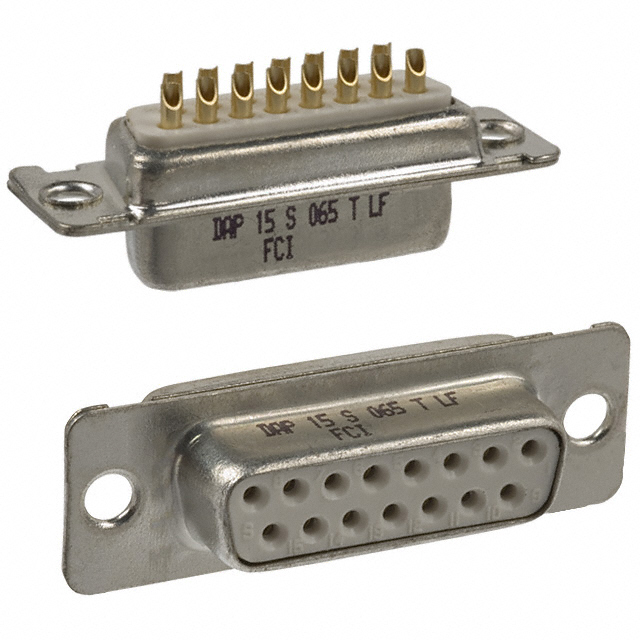

CONN D-SUB RCPT 15POS SOLDER CUP
| Part | Contact Finish | Connector Type | Material Flammability Rating | Current Rating (Amps) | Contact Material | Flange Feature | Contact Type | Number of Positions | Features | Mounting Type | Dielectric Material | Contact Finish Thickness | Contact Finish Thickness | Number of Rows | Shell Size, Connector Layout | Operating Temperature [Min] | Operating Temperature [Max] | Connector Style | Voltage Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Gold GXT™ | Receptacle Female Sockets | UL94 V-0 | 7.5 A | Copper Alloy | Housing/Shell (Unthreaded) | Signal | 15 | Shielded | Free Hanging (In-Line) | Thermoplastic | 0.76 Ám | 30 Áin | 2 | 2 | -55 °C | 125 °C | D-Sub | 1000 VDC |
 Amphenol ICC (FCI) | Gold GXT™ | Receptacle Female Sockets | UL94 V-0 | 7.5 A | Copper Alloy | Housing/Shell (Unthreaded) | Signal | 15 | Free Hanging (In-Line) | Thermoplastic | 0.76 Ám | 30 Áin | 2 | 2 | -55 °C | 125 °C | D-Sub | 1000 VDC |
