657-14 Series

Manufacturer: DIALIGHT

Catalog

PMI, FLAT, GRY, 10-30VDC

Part	Lens Transparency	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [x]	Voltage [Max]	Voltage [Min]	Lens Style	Lamp Color	Panel Cutout Shape	Type	Lens Color	Ingress Protection	Ratings	Current	Lens Size [diameter]	Millicandela Rating	Millicandela Rating [custom]	Millicandela Rating [custom]	Millicandela Rating [custom]

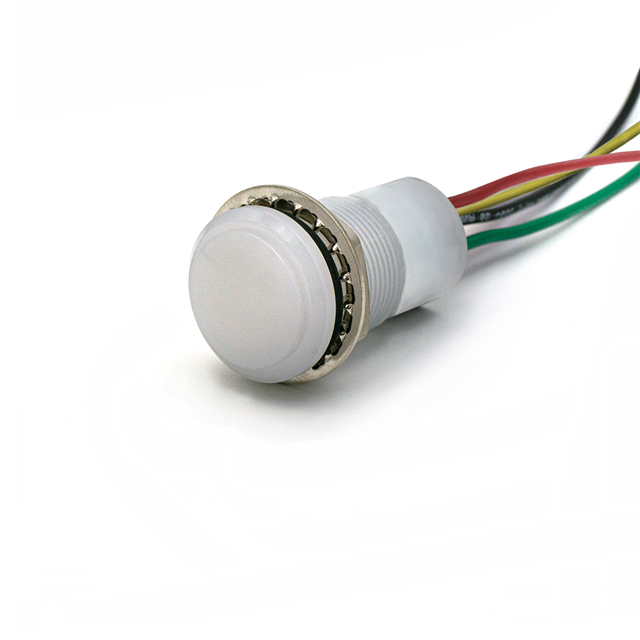

DIALIGHT 657-1495-303F	Diffused	17.46 mm	0.69 "	30 V	10 V	Round with Flat Top	Green Red Yellow	Round	LED	White	IP67 NEMA 4X	DC	20 mA	16.5 mm	270 mcd 310 mcd 515 mcd
DIALIGHT 657-1435-303F	Diffused	17.46 mm	0.69 "	30 V	10 V	Round with Flat Top	Green Yellow	Round	LED	White	IP67 NEMA 4X	DC	20 mA	16.5 mm	310 mcd 515 mcd

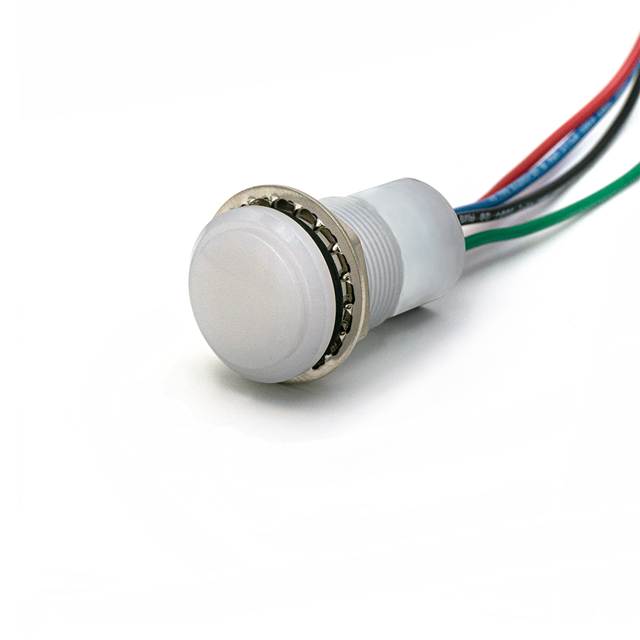

DIALIGHT 657-1485-303F	Diffused	17.46 mm	0.69 "	30 V	10 V	Round with Flat Top	Blue Green Red	Round	LED	White	IP67 NEMA 4X	DC	20 mA	16.5 mm		270 mcd	515 mcd	90 mcd
DIALIGHT 657-1425-303F	Diffused	17.46 mm	0.69 "	30 V	10 V	Round with Flat Top	Blue Red	Round	LED	White	IP67 NEMA 4X	DC	20 mA	16.5 mm		270 mcd		90 mcd

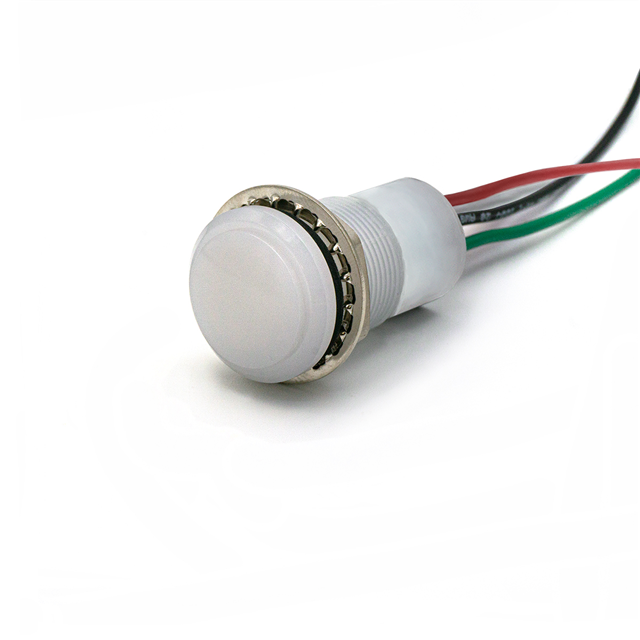

DIALIGHT 657-1415-303F	Diffused	17.46 mm	0.69 "	30 V	10 V	Round with Flat Top	Green Red	Round	LED	White	IP67 NEMA 4X	DC	20 mA	16.5 mm	270 mcd 515 mcd

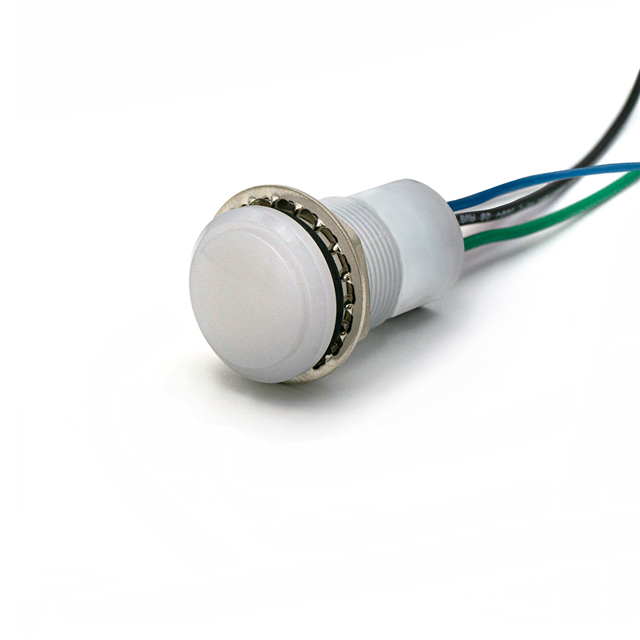

DIALIGHT 657-1465-303F	Diffused	17.46 mm	0.69 "	30 V	10 V	Round with Flat Top	Blue Green	Round	LED	White	IP67 NEMA 4X	DC	20 mA	16.5 mm			515 mcd	90 mcd
