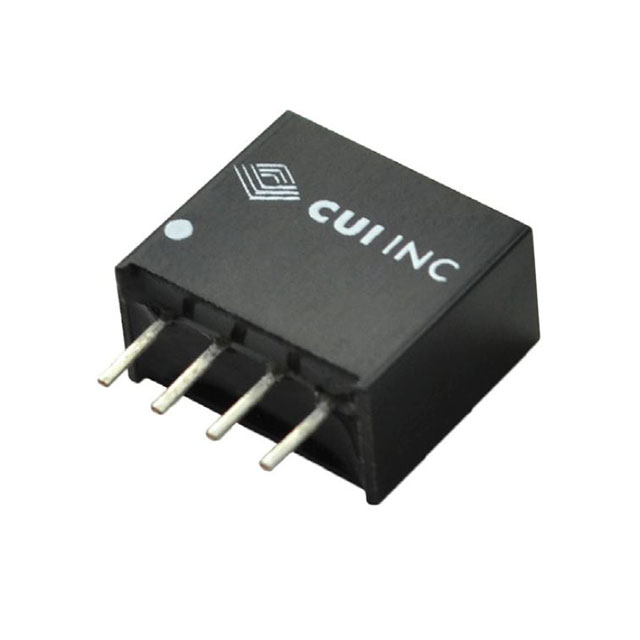

PCSA1 Series
Manufacturer: CUI Inc.
Beta
⌘K
MODULE DC-DC 5VIN 1-OUT 15V 0.067A 1W 4-PIN SIP MODULE TUBE
| Part | Voltage - Input (Min) [Min] | Voltage - Isolation | Voltage - Output 1 | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Max) [Max] | Type | Mounting Type | Current - Output (Max) [Max] | Efficiency | Applications | Package / Case | Number of Outputs | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 4.5 V | 1000 V | 15 V | 10.2 mm | 6 mm | 0.24 " | 0.46 in | 11.6 mm | 0.4 " | -40 C | 100 °C | 5.5 V | Isolated Module | Through Hole | 67 mA | 80 % | ITE (Commercial) | 4-SIP Module | 1 | SCP |
 CUI Inc. | 10.8 V | 1000 V | 12 V | 10.2 mm | 6 mm | 0.24 " | 0.46 in | 11.6 mm | 0.4 " | -40 C | 100 °C | 13.2 V | Isolated Module | Through Hole | 84 mA | 81 % | ITE (Commercial) | 4-SIP Module | 1 | SCP |
CUI Inc. | 4.5 V | 1000 V | 5 V | 10.2 mm | 6 mm | 0.24 " | 0.46 in | 11.6 mm | 0.4 " | -40 C | 100 °C | 5.5 V | Isolated Module | Through Hole | 200 mA | 79 % | ITE (Commercial) | 4-SIP Module | 1 | SCP |
CUI Inc. | 21.6 V | 1000 V | 15 V | 10.2 mm | 7.5 mm | 0.3 " | 0.46 in | 11.6 mm | 0.4 " | -40 C | 100 °C | 26.4 V | Isolated Module | Through Hole | 67 mA | 81 % | ITE (Commercial) | 4-SIP Module | 1 | SCP |
CUI Inc. | 10.8 V | 1000 V | 15 V | 10.2 mm | 6 mm | 0.24 " | 0.46 in | 11.6 mm | 0.4 " | -40 C | 100 °C | 13.2 V | Isolated Module | Through Hole | 67 mA | ITE (Commercial) | 4-SIP Module | 1 | SCP |
