1510 Series

Catalog

CONN BARRIER STRP 10CIRC 0.375"

Part	Operating Temperature	Mounting Type	Material Flammability Rating	Terminal Screw Finish	Material - Insulation	Number of Rows [custom]	Number of Circuits	Pitch	Pitch	Barrier Type	Features	Bottom Termination	Top Termination	Number of Wire Entries	Current Rating (Amps)	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Block Type	Terminal Screw Material
Curtis Industries 1510-ST	110 °C	Chassis Panel	UL94 V-0	Tin	Polyphenylene Oxide (PPO)	2	10	9.53 mm	0.375 in	2 Wall (Dual)	Flange	Closed	Dual Screws with Solder Lugs	20	20 A	22 AWG	10 AWG	Barrier Block
Curtis Industries 1510-YSY	110 °C	Chassis Panel Through Hole	UL94 V-0		Polyphenylene Oxide (PPO)	2	10	9.53 mm	0.375 in	2 Wall (Dual)	Flange	PC Pin	Screws	20	20 A	22 AWG	10 AWG	Barrier Block	Steel

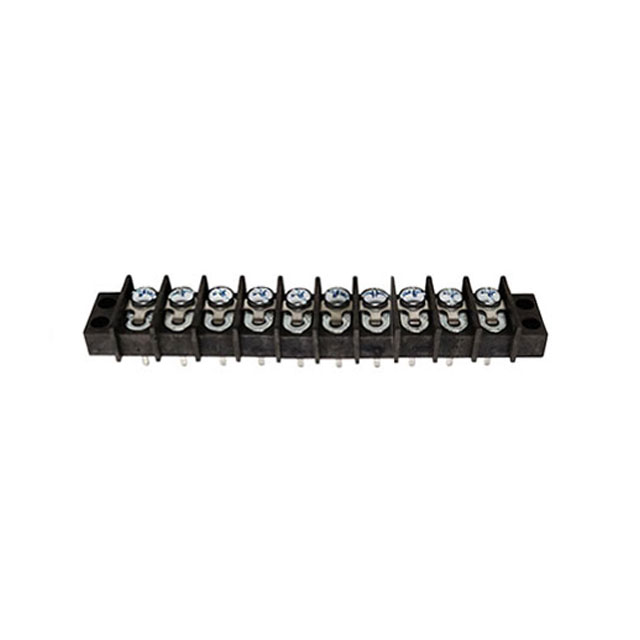

Curtis Industries 1510-Y	110 °C	Chassis Panel Through Hole	UL94 V-0		Polyphenylene Oxide (PPO)	2	10	9.53 mm	0.375 in	2 Wall (Dual)	Flange	PC Pin	Screws	20	20 A	22 AWG	10 AWG	Barrier Block	Steel

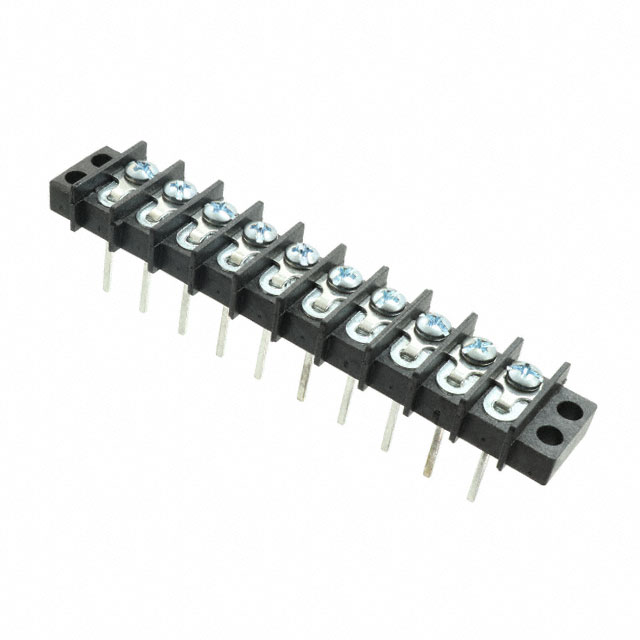

Curtis Industries 1510-YWY	110 °C	Chassis Panel Through Hole	UL94 V-0		Polyphenylene Oxide (PPO)	2	10	9.53 mm	0.375 in	2 Wall (Dual)	Flange	Wire Wrap	Screws	20	20 A	22 AWG	10 AWG	Barrier Block	Steel
Curtis Industries 1510-3/4ST	110 °C	Chassis Panel	UL94 V-0	Tin	Polyphenylene Oxide (PPO)	2	10	9.53 mm	0.375 in	2 Wall (Dual)	Flange	Closed	Screws with Solder Lugs Single	20	20 A	22 AWG	10 AWG	Barrier Block
