5156C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

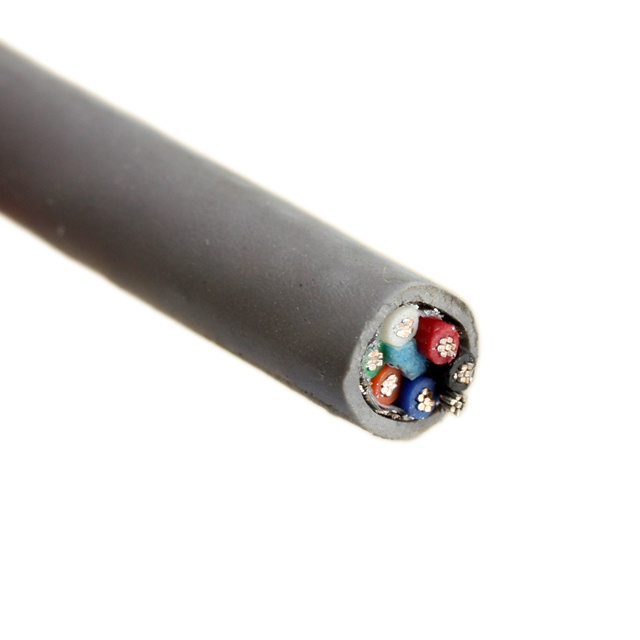

MULTICONDUCTOR CABLE, XTRA GUARD® 1, SHIELDED, 6 CONDUCTOR, 20 AWG, 0.56 MM², 1000 FT, 304.8 M
| Part | Spool Size [x] | Spool Size [x] | Length | Shield Coverage | Shield Material | Jacket (Insulation) Material | Operating Temperature [Min] | Operating Temperature [Max] | Length | Length | Conductor Material | Cable Type | Shield Type | Conductor Insulation | Jacket Color | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Wire Gauge | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Ratings | Voltage | Usage | Conductor Strand [custom] | Conductor Strand [custom] | Number of Conductors | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 304.8 m | 1000 ft | Enter Number of Feet in Order Quantity | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 304.8 m | 1000 ft | Copper Tinned | Multi-Conductor | Braid Foil | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | 20 AWG | 0.308 in | 7.82 mm | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | 300 VDC | Communication Control | 28 AWG | 7 | 6 | ||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 152.4 m | 500 ft | Copper Tinned | Multi-Conductor | Braid Foil | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | 20 AWG | 0.308 in | 7.82 mm | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | 300 VDC | Communication Control | 28 AWG | 7 | 6 | |||||
ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | Copper Tinned | Multi-Conductor | Braid Foil | Poly-Vinyl Chloride (PVC) | Slate | 0.813 mm | 0.032 in | 20 AWG | 0.308 in | 7.82 mm | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | 300 VDC | Communication Control | 28 AWG | 7 | 6 | 100 ft | 30.5 m | |||||
 ALPHA WIRE | 70 % 100 % | Copper Tinned Suprashield® | Poly-Vinyl Chloride (PVC) | -35 °C | 105 ░C | 304.8 m | 1000 ft | Copper Tinned | Multi-Conductor | Braid Foil | Poly-Vinyl Chloride (PVC) | Black | 0.813 mm | 0.032 in | 20 AWG | 0.308 in | 7.82 mm | Biological Compatibility Drain Wire Rip Cord | ISO 10993 UL Style 2464 | 300 VDC | Communication Control | 28 AWG | 7 | 6 |
