UCC24610 Series
Manufacturer: Texas Instruments
Beta
⌘K
SECONDARY SIDE SYNCHRONOUS RECTIFIER CONTROLLER
| Part | Current - Supply | Operating Temperature [Max] | Operating Temperature [Min] | Supplier Device Package | Voltage - Input [Min] | Voltage - Input [Max] | Package / Case | Package / Case | Package / Case | Applications | Mounting Type | Supplied Contents | Board Type | Power - Output | Outputs and Type | Outputs and Type | Main Purpose | Contents | Voltage - Output | Regulator Topology | Utilized IC / Part | Frequency - Switching | Frequency - Switching [Min] | Frequency - Switching [Max] | Current - Output |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Texas Instruments | 2.15 mA | 125 °C | -40 C | 8-SOIC | 4.5 V | 5.5 V | 0.154 in | 8-SOIC | 3.9 mm | Flyback Forward Converters LLC | Surface Mount | ||||||||||||||

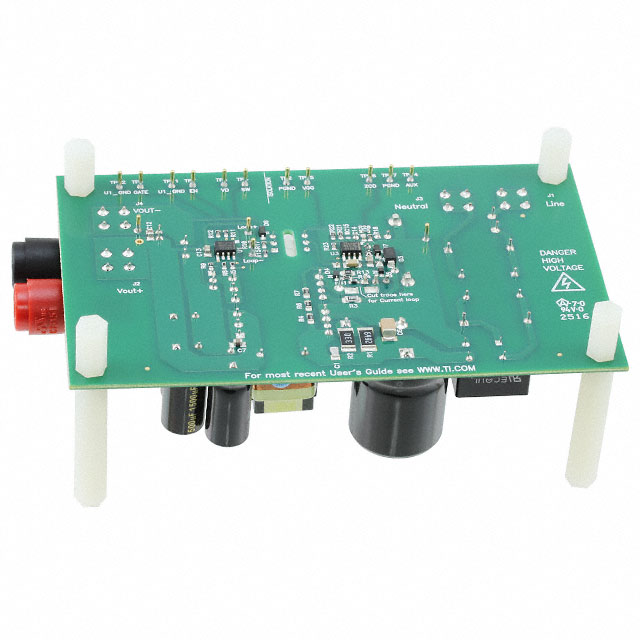

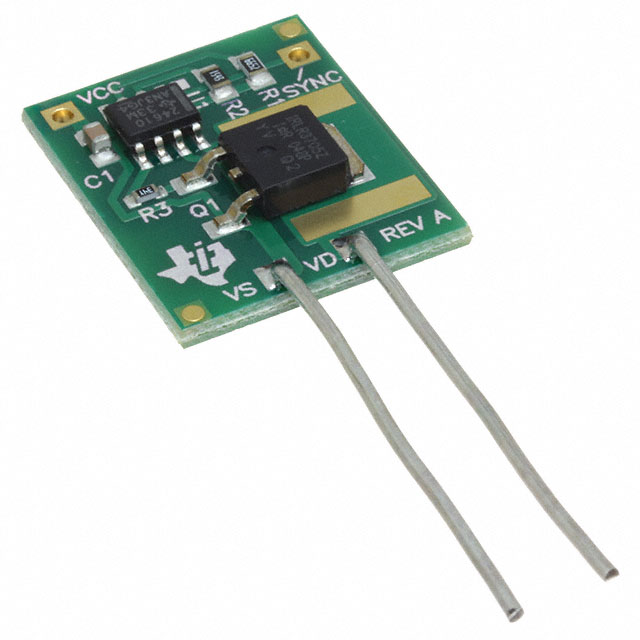

 Texas Instruments | Board(s) | Fully Populated | 10 W | 1 Isolated Output Isolated | 1 | AC/DC Secondary Side | Board(s) | 5 V | Flyback | UCC24610 | 1 MHz | ||||||||||||||

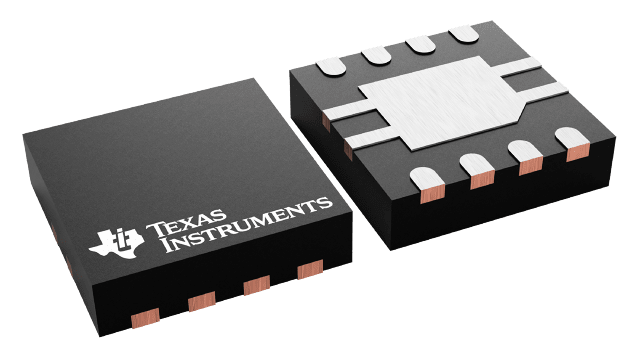

 Texas Instruments | 2.15 mA | 125 °C | -40 C | 8-SON (3x3) | 4.5 V | 5.5 V | 8-VDFN Exposed Pad | Flyback Forward Converters LLC | Surface Mount | ||||||||||||||||
 Texas Instruments | 85 VAC | 265 VAC | Board(s) | Fully Populated | 25 W | 1 Isolated Output Isolated | 1 | AC/DC Secondary Side | Board(s) | 5 V | Flyback | UCC24610 | 30 kHz | 26.3 kHz | 140.4 kHz | 5 A | |||||||||
Texas Instruments | 2.15 mA | 125 °C | -40 C | 8-SON (3x3) | 4.5 V | 5.5 V | 8-VDFN Exposed Pad | Flyback Forward Converters LLC | Surface Mount | ||||||||||||||||
Texas Instruments | 2.15 mA | 125 °C | -40 C | 8-SOIC | 4.5 V | 5.5 V | 0.154 in | 8-SOIC | 3.9 mm | Flyback Forward Converters LLC | Surface Mount |
