MAX8791 Series

Catalog

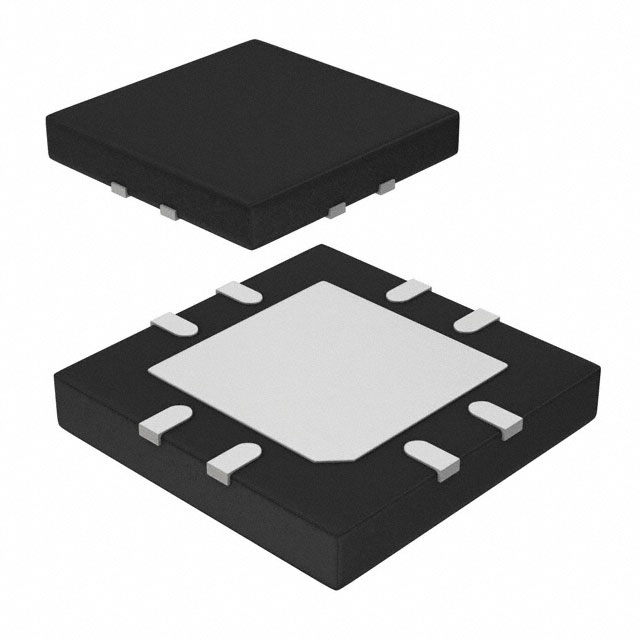

IC GATE DRVR HALF-BRIDGE 8TQFN

Part	Gate Type	Supplier Device Package	Channel Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Voltage - Supply [Min]	Voltage - Supply [Max]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Number of Drivers	Mounting Type	Input Type	Driven Configuration
Analog Devices Inc./Maxim Integrated MAX8791BGTA+T	MOSFET (N-Channel) N-Channel MOSFET	8-TQFN (3x3)	Synchronous	8 ns	10 ns	4.2 V	5.5 V	2.2 A	2.7 A	-40 °C	150 °C	8-WQFN Exposed Pad	2	Surface Mount	Non-Inverting	Half-Bridge
Analog Devices Inc./Maxim Integrated MAX8791BGTA+	MOSFET (N-Channel) N-Channel MOSFET	8-TQFN (3x3)	Synchronous	8 ns	10 ns	4.2 V	5.5 V	2.2 A	2.7 A	-40 °C	150 °C	8-WQFN Exposed Pad	2	Surface Mount	Non-Inverting	Half-Bridge
Analog Devices Inc./Maxim Integrated MAX8791GTA+	MOSFET (N-Channel) N-Channel MOSFET	8-TQFN (3x3)	Synchronous	8 ns	10 ns	4.2 V	5.5 V	2.2 A	2.7 A	-40 °C	150 °C	8-WQFN Exposed Pad	2	Surface Mount	Non-Inverting	Half-Bridge
