EKZE630E Series

Manufacturer: Chemi-Con

Catalog

CAP ALUM 220UF 20% 63V RADIAL TH

Part	Lifetime @ Temp.	Operating Temperature [Min]	Operating Temperature [Max]	Tolerance	Ripple Current @ High Frequency	Lead Spacing	Lead Spacing	Package / Case	Capacitance	Impedance	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Voltage - Rated	Ripple Current @ Low Frequency	Applications	Polarization	Mounting Type	Size / Dimension [diameter]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max)	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max]
Chemi-Con EKZE630ETD221MJ25S	4000 Hrs	-40 C	105 ░C	20 %	1.35 A	0.197 "	5 mm	Can Radial	220 µF	46 mOhms	26.5 mm	1.043 in	63 V	675 mA	General Purpose	Polar	Through Hole	0.394 in	10 mm
Chemi-Con EKZE630EC3681MK40S	5000 Hrs	-40 C	105 ░C	20 %	2.8 A	0.197 "	5 mm	Can Radial	680 µF	21 mOhms			63 V	1.68 A	General Purpose	Polar	Through Hole	0.492 in	12.5 mm	1.634 in	41.5 mm
Chemi-Con EKZE630ETE271MK20S	5000 Hrs	-40 C	105 ░C	20 %	1.5 A	0.197 "	5 mm	Can Radial	270 µF	41 mOhms			63 V	750 mA	General Purpose	Polar	Through Hole	0.492 in	12.5 mm	0.846 "		21.5 mm

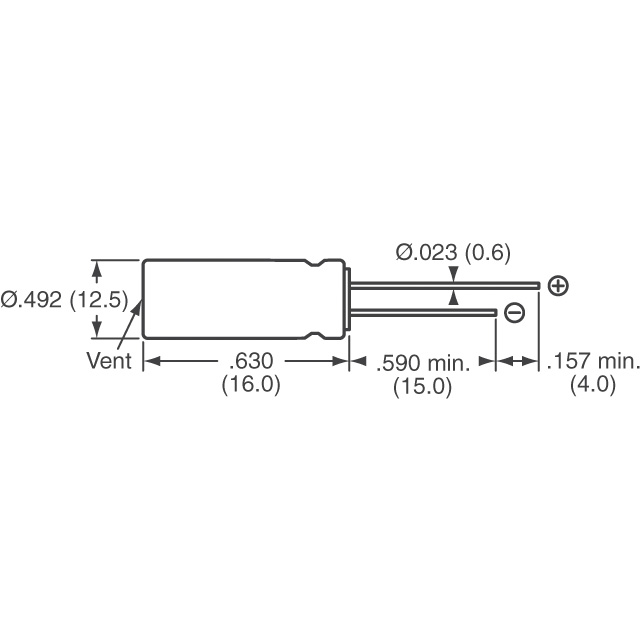

Chemi-Con EKZE630ELL181MK16S	5000 Hrs	-40 C	105 ░C	20 %	1.15 A	0.197 "	5 mm	Can Radial	180 µF	72 mOhms	0.689 in		63 V	460 mA	General Purpose	Polar	Through Hole	0.492 in	12.5 mm				17.5 mm
Chemi-Con EKZE630ELL330MF11D	2000 Hrs	-40 C	105 ░C	20 %	265 mA	0.098 in	2.5 mm	Can Radial	33 ÁF	350 mOhms	11 mm	0.433 in	63 V	106 mA	General Purpose	Polar	Through Hole	0.248 "	6.3 mm

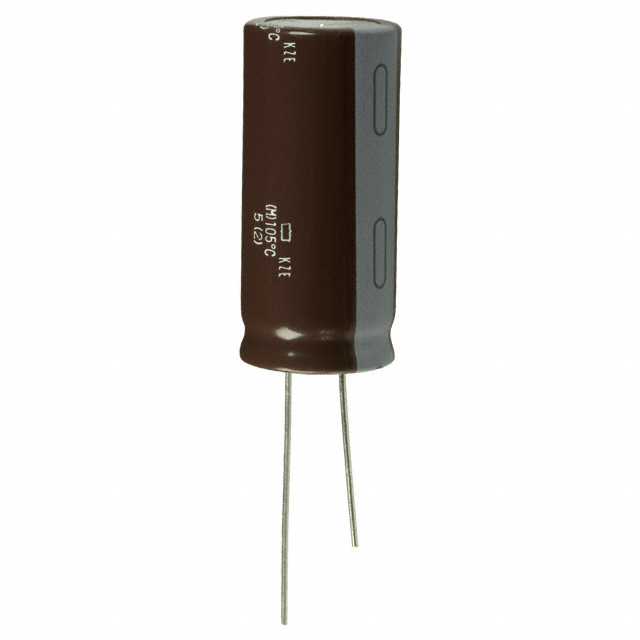

Chemi-Con EKZE630ELL182MM40S	5000 Hrs	-40 C	105 ░C	20 %	3.5 A	0.295 in	7.5 mm	Can Radial	1800 µF	17 mOhms			63 V	2.1 A	General Purpose	Polar	Through Hole	0.709 in	18 mm	1.634 in	41.5 mm
Chemi-Con EKZE630ELL391MK25S	5000 Hrs	-40 C	105 ░C	20 %		0.197 "	5 mm	Can Radial	390 µF	31 mOhms	26.5 mm	1.043 in	63 V	120 Hz 950 mA	General Purpose	Polar	Through Hole	0.492 in	12.5 mm
Chemi-Con EKZE630ETD330MF11D	2000 Hrs	-40 C	105 ░C	20 %	265 mA	0.098 in	2.5 mm	Can Radial	33 ÁF	350 mOhms			63 V	106 mA	General Purpose	Polar	Through Hole	0.248 "	6.3 mm			0.492 in		12.5 mm
Chemi-Con EKZE630EC3221MJ25S	4000 Hrs	-40 C	105 ░C	20 %	1.35 A	0.197 "	5 mm	Can Radial	220 µF	46 mOhms	26.5 mm	1.043 in	63 V	675 mA	General Purpose	Polar	Through Hole	0.394 in	10 mm
Chemi-Con EKZE630ELL820MJC5S	4000 Hrs	-40 C	105 ░C	20 %	690 mA	0.197 "	5 mm	Can Radial	0.082 mF	110 mOhms			63 V	276 mA	General Purpose	Polar	Through Hole	0.394 in	10 mm	0.551 in		14 mm
