157.5701.6401 Series

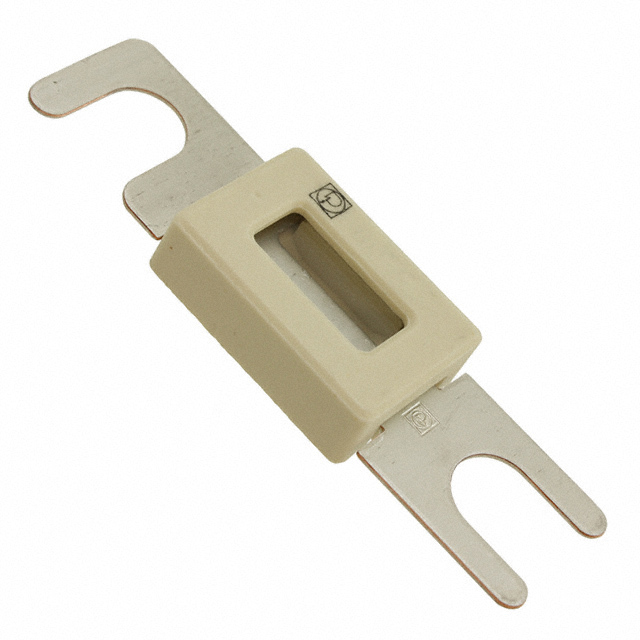

Fuse - Strip 60 w/ Housing 48VDC, 400A

Catalog

Fuse - Strip 60 w/ Housing 48VDC, 400A

Part	Voltage Rating - DC	Fuse Type	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Applications	Mounting Type	Breaking Capacity @ Rated Voltage	Package / Case	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]
Littelfuse/Commercial Vehicle Products 157.5701.6401	48 V	Fuse Strip	125 °C	-40 °C	400 A	Lift Trucks	Bolt Mount	2.4 kA	Metal Strip	10.5 mm	0.866 in	82 mm	3.228 in	0.413 "	22 mm

Fuse - Strip 60 w/ Housing 48VDC, 400A

• Tin-plated zinc alloy

• 11 mm lug aperture

• Interrupting rating of 2.4 kA at 48 V dc

• Recognized as a UL 248 Special Purpose Fuse

This 400 A special purpose EV fuse strip comes with its housing. The fuse protects wires rated for 48 V in battery-powered vehicles.
