EPM7096 Series

Manufacturer: Altera

Catalog

IC CPLD 96MC 10NS 100QFP

Part	Number of Logic Elements/Blocks	Programmable Type	Mounting Type	Number of Gates	Package / Case	Number of I/O	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Supply - Internal [Min]	Voltage Supply - Internal [Max]	Number of Macrocells	Delay Time tpd(1) Max [Max]	Supplier Device Package	Number of I/O [custom]

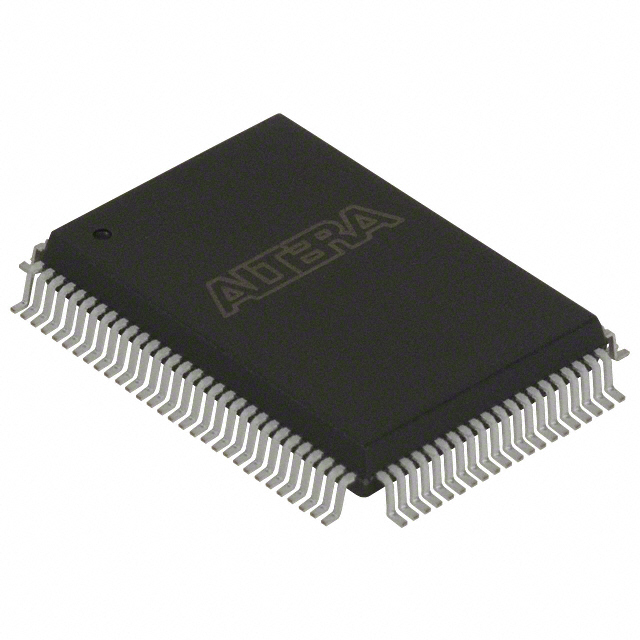

Altera EPM7096QC100-10	6	EE PLD	Surface Mount	1800	100-BQFP	76	0 °C	70 °C	4.75 V	5.25 V	96	10 ns	100-PQFP (20x14)
Altera EPM7096LC84-12	6	EE PLD	Surface Mount	1800	84-LCC (J-Lead)		0 °C	70 °C	4.75 V	5.25 V	96	12 ns	84-PLCC (29.31x29.31)	68

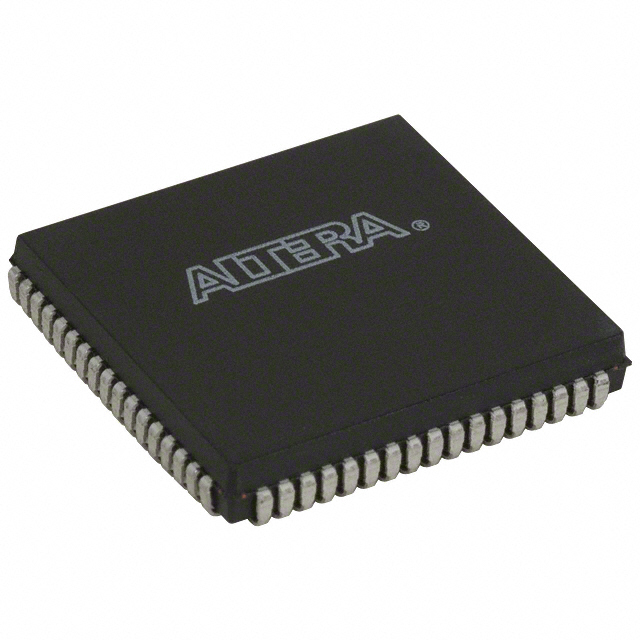

Altera EPM7096LI68-15	6	EE PLD	Surface Mount	1800	68-LCC (J-Lead)	52	-40 ¯C	85 C	4.5 V	5.5 V	96	15 ns	24x24 68-PLCC
Altera EPM7096LC84-7	6	EE PLD	Surface Mount	1800	84-LCC (J-Lead)		0 °C	70 °C	4.75 V	5.25 V	96	7.5 ns	84-PLCC (29.31x29.31)	68
Altera EPM7096QC100-10	6	EE PLD	Surface Mount	1800	100-BQFP	76	0 °C	70 °C	4.75 V	5.25 V	96	10 ns	100-PQFP (20x14)
Altera EPM7096LC84-7	6	EE PLD	Surface Mount	1800	84-LCC (J-Lead)		0 °C	70 °C	4.75 V	5.25 V	96	7.5 ns	84-PLCC (29.31x29.31)	68
Altera EPM7096QC100-15	6	EE PLD	Surface Mount	1800	100-BQFP	76	0 °C	70 °C	4.75 V	5.25 V	96	15 ns	100-PQFP (20x14)
Altera EPM7096LC84-2S002A	6	EE PLD	Surface Mount	1800	84-LCC (J-Lead)		0 °C	70 °C	4.75 V	5.25 V	96	20 ns	84-PLCC (29.31x29.31)	68
Altera EPM7096LC84-12	6	EE PLD	Surface Mount	1800	84-LCC (J-Lead)		0 °C	70 °C	4.75 V	5.25 V	96	12 ns	84-PLCC (29.31x29.31)	68
Altera EPM7096LI84-15	6	EE PLD	Surface Mount	1800	84-LCC (J-Lead)		-40 ¯C	85 C	4.5 V	5.5 V	96	15 ns	84-PLCC (29.31x29.31)	68
