DIW4 Series
Manufacturer: Belden Inc.
Beta
⌘K

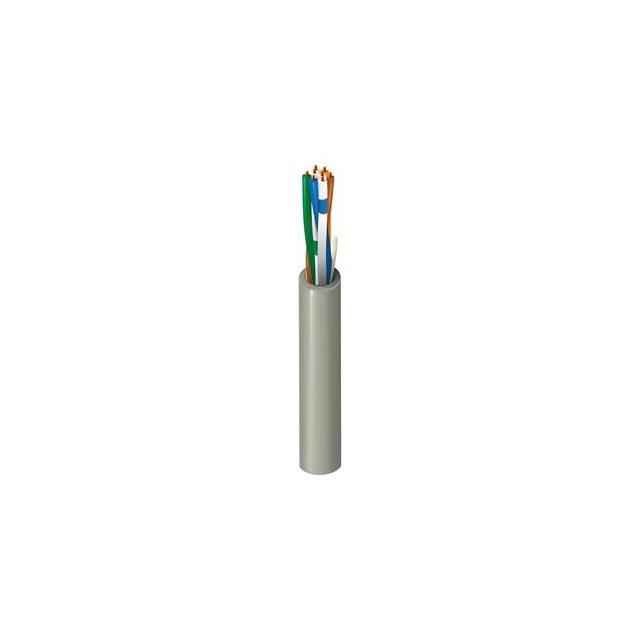

CAT3 4PR U/UTP CMR BOX
| Part | Ratings | Conductor Insulation | Features | Number of Conductors | Wire Gauge | Conductor Strand | Length | Length | Operating Temperature [Min] | Operating Temperature [Max] | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Usage | Conductor Material | Jacket (Insulation) Material | Jacket Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | UL Style CMR | Poly-Vinyl Chloride (PVC) | Rip Cord | 8 | 24 AWG | Solid | 304.8 m | 1000 ft | -30 ░C | 60 °C | Cat3 Multi-Pair | 0.169 in | 4.29 mm | Network | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Olive |
Belden Inc. | UL Style CMR | Poly-Vinyl Chloride (PVC) | Rip Cord | 8 | 24 AWG | Solid | 457.2 m | 1500 ft | -30 ░C | 60 °C | Cat3 Multi-Pair | 0.169 in | 4.29 mm | Network | Copper Bare | Poly-Vinyl Chloride (PVC) Riser | Olive |
