SX1276 Series

Catalog

RF TXRX MOD ISM<1GHZU.FL TH

Part	Frequency [Max]	Frequency [Min]	Sensitivity	Mounting Type	Serial Interfaces	Operating Temperature [Max]	Operating Temperature [Min]	Current - Receiving [Max]	Current - Receiving [Min]	Current - Transmitting [Min] [x]	Current - Transmitting [Max] [x]	Modulation	Antenna Type	Package / Case	Voltage - Supply [Min]	Voltage - Supply [Max]	Power - Output	RF Family/Standard	Frequency	Data Rate (Max)	GPIO	Type	Supplier Device Package	Protocol	Current - Receiving	Current - Transmitting	Supplied Contents	For Use With/Related Products	Utilized IC / Part	Contents

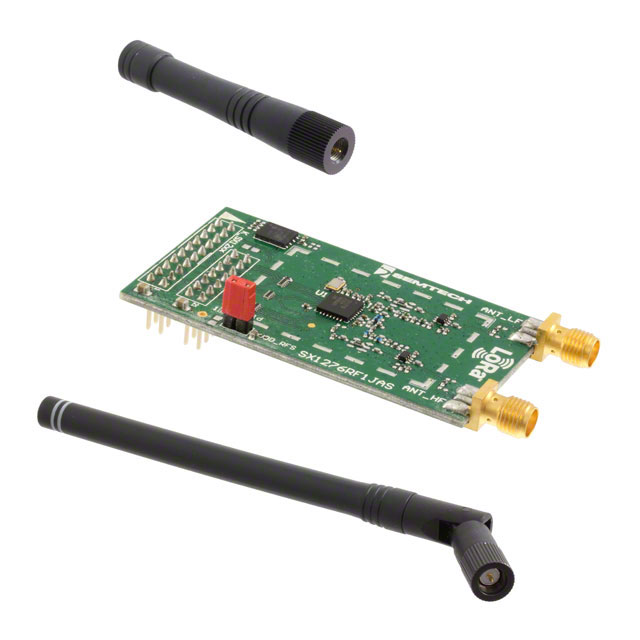

Semtech Corporation SX1276RF1JAS	1.02 GHz	137 MHz	-148 dBm	Through Hole	SPI	85 °C	-40 C	12 mA	10.8 mA	20 mA	120 mA	FSK GFSK GMSK MSK OOK	Antenna Not Included U.FL	Module	1.8 V	3.7 V	20 dBm	General ISM < 1GHz	433 MHz 915 MHz

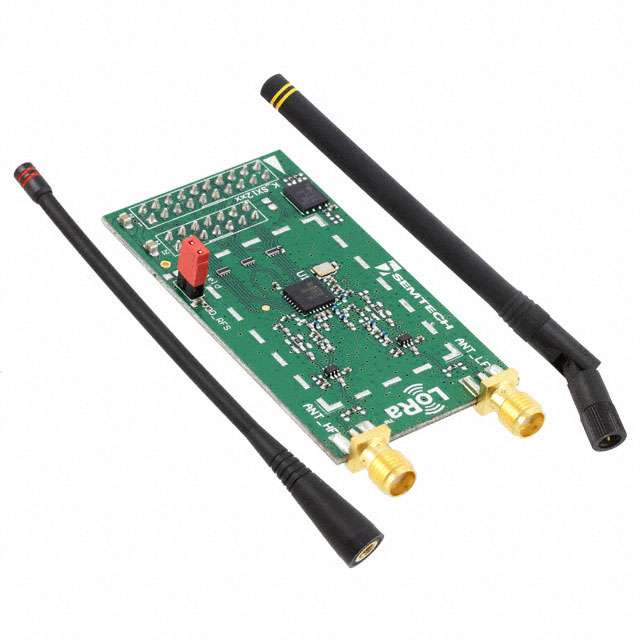

Semtech Corporation SX1276RF1KAS	1.02 GHz	137 MHz	-148 dBm	Through Hole	SPI	85 °C	-40 C	12 mA	10.8 mA	20 mA	120 mA	FSK GFSK GMSK MSK OOK	Antenna Not Included U.FL	Module	1.8 V	3.7 V	20 dBm	General ISM < 1GHz	433 MHz 868 MHz

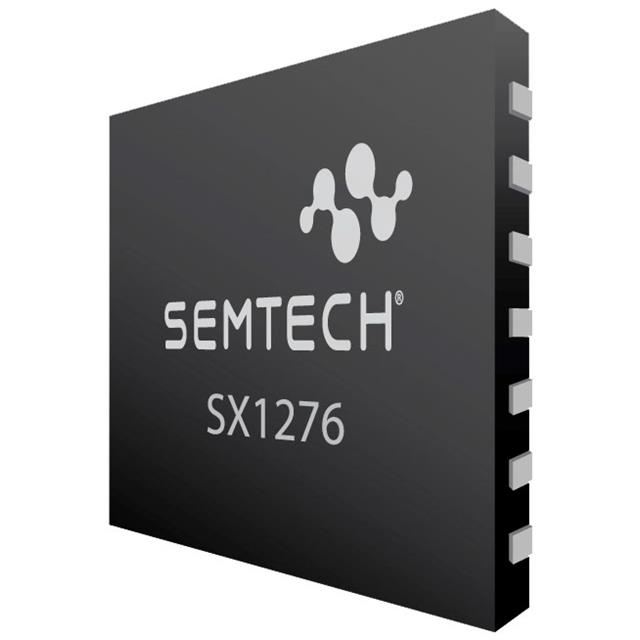

Semtech Corporation SX1276IMLTRT	1.02 GHz	137 MHz	-148 dBm	Surface Mount	SPI	85 °C	-40 C	12 mA	10.8 mA	20 mA	120 mA	FSK GFSK GMSK MSK OOK		28-VQFN Exposed Pad	1.8 V	3.7 V	20 dBm	802.15.4		300 kbps	6	TxRx Only	28-QFN (6x6)	LoRa™
Semtech Corporation SX1276MB1MAS	1.02 GHz	137 MHz	-148 dBm	Through Hole	SPI	85 °C	-40 C					FSK GFSK GMSK MSK OOK	Antenna Not Included U.FL	Module	1.8 V	3.7 V	14 dBm	General ISM < 1GHz	433 MHz 868 MHz						12 mA	120 mA
Semtech Corporation SX1276RF1IAS	1.02 GHz	137 MHz	-148 dBm	Through Hole	SPI	85 °C	-40 C					FSK GFSK GMSK MSK OOK	Integrated Whip + Wire Antenna	Module	1.8 V	3.7 V	20 dBm	General ISM < 1GHz	433 MHz 868 MHz						12 mA	120 mA
Semtech Corporation SX1276DVK1KAS																			490 MHz 915 MHz			Transceiver; LoRa®					Board(s) Cable(s)	SX1276	SX1276	Board Cable
